Nason >> Nason Piston & pin set - 4P1275-STD

Nason Piston & pin set - 4P1275-STD

Part
Nason logo

Nason Piston & pin set - 4P1275-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.50mm
Size: Std

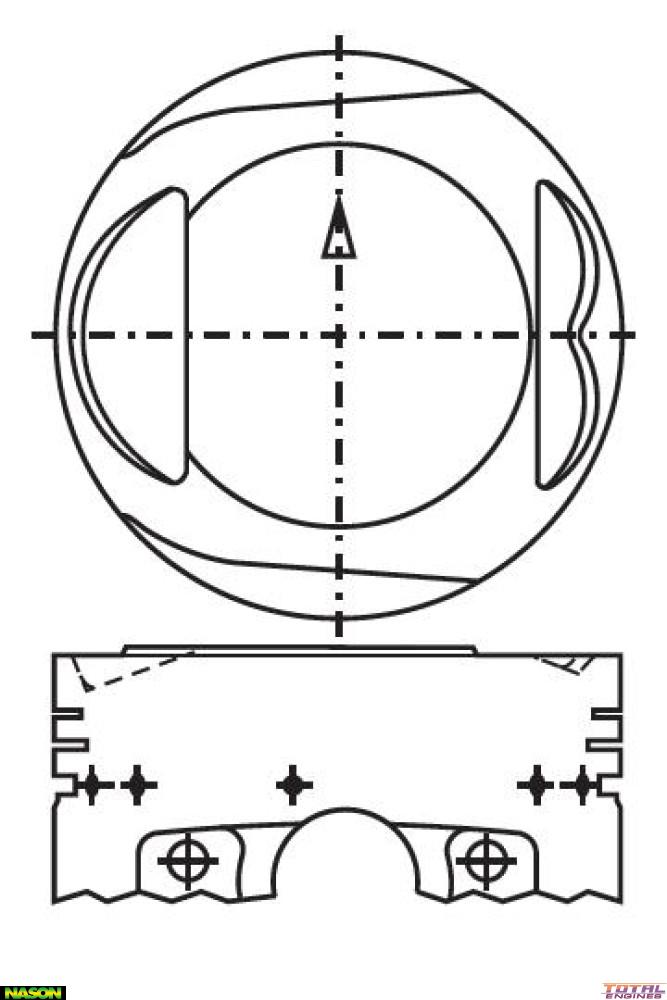

Head Type: Dome Top with 3 Valve Reliefs
Piston Type: Cast
Length: 67.00mm
Comp Height: 35.00mm + 0.20mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4783

Description

22mm Piston Pin

Replaces 4MKRY8063
