Nason >> Nason Piston & pin set - 4P1276-STD

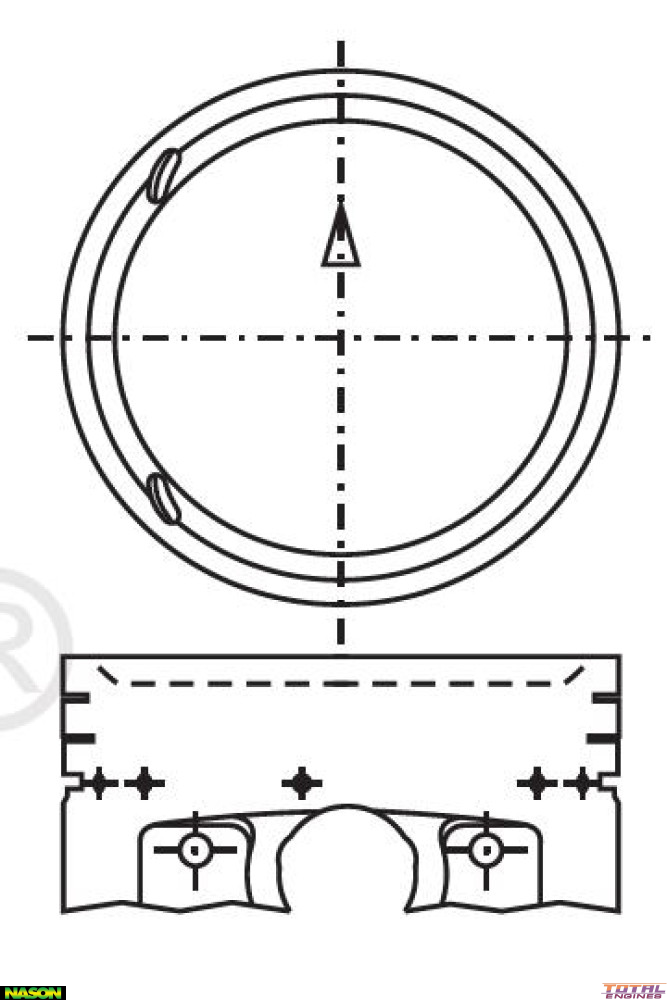

Nason Piston & pin set - 4P1276-STD

Part
Nason logo

Nason Piston & pin set - 4P1276-STD

$247.75

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.50mm
Size: Std
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 67.00mm
Comp Height: 35.00mm - 4.10mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4780

Description

Dish Top

Replaces 4MKRY8065
