Nason >> Nason Piston & pin set - 4P1281-0.50

Nason Piston & pin set - 4P1281-0.50

Part
Nason logo

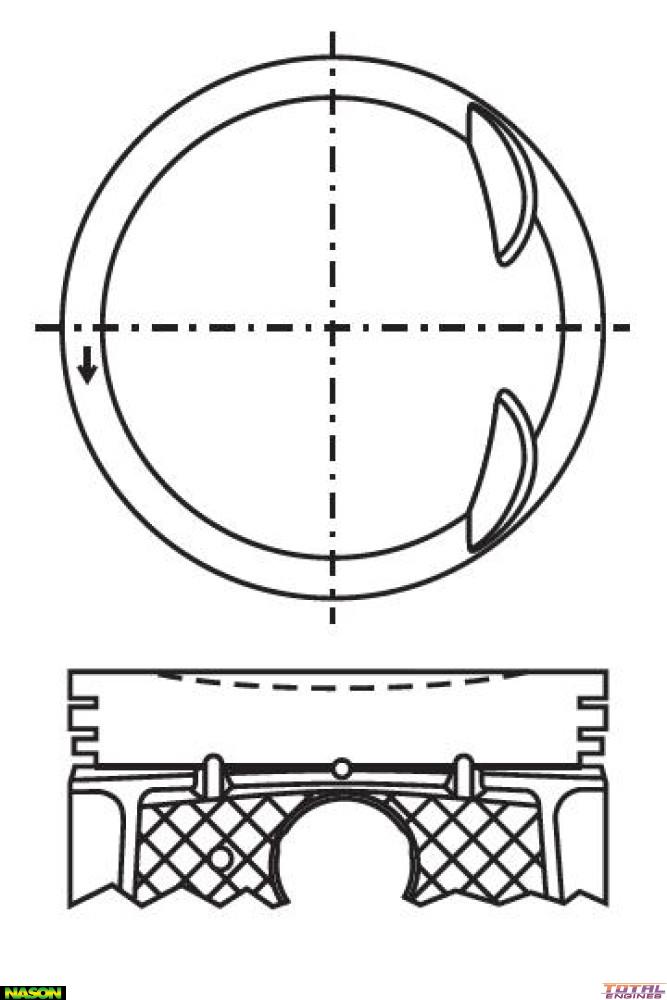

Nason Piston & pin set - 4P1281-0.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 87.50mm
Size: 0.50mm / .020"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 51.00mm
Comp Height: 28.50mm - 3.30mm
Pin Size: 21.00mm x 60.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.50mm
Ring Set: 2C5158

Description

With 3.30mm Bowl Depth

Anodized Head, Top & 2nd Ring Lands

Replaces 4MKRY8081
