Nason >> Nason Piston & pin set - 4P1281-STD

Nason Piston & pin set - 4P1281-STD

Part
Nason logo

Nason Piston & pin set - 4P1281-STD

Out Of Stock

Specifications
Size: Suits 3.30mm Bowl Depth
Ring Set: 2C5158
Oil Ring Width: 2.50mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 21.00mm x 60.00mm
Comp Height: 28.50mm - 3.30mm
Length: 51.00mm
Piston Type: Cast

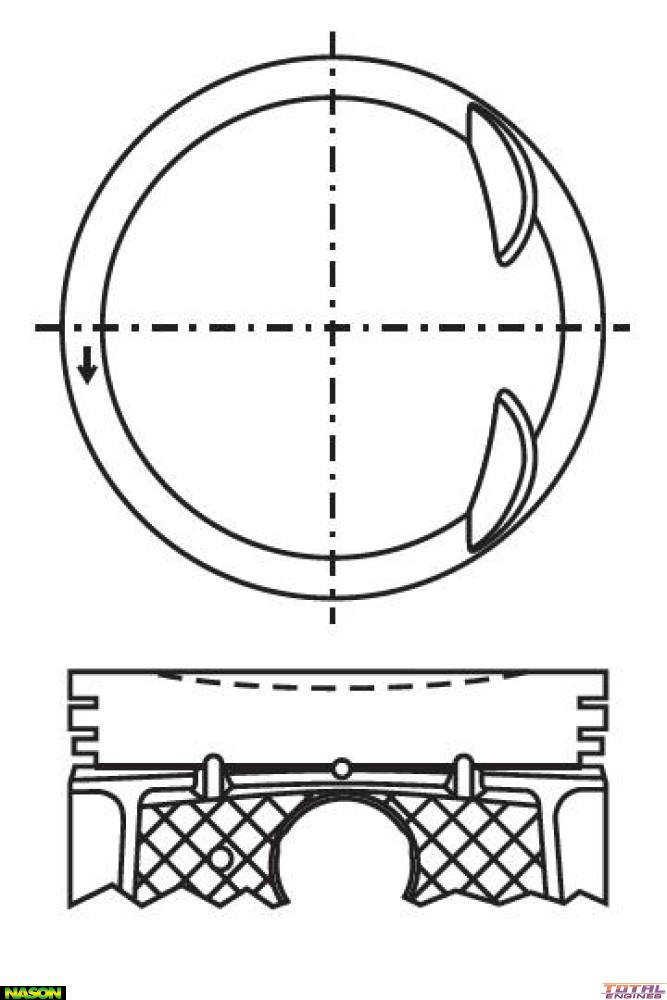

Head Type: Dish Top with 2 Valve Reliefs
Std Bore Size: 87.50mm
Piston Set: 4 x Piston & Pins

Description

With 3.30mm Bowl Depth

Anodized Head, Top & 2nd Ring Lands
