Nason >> Nason Piston & pin set - 4P1287-STD

Nason Piston & pin set - 4P1287-STD

Part
Nason logo

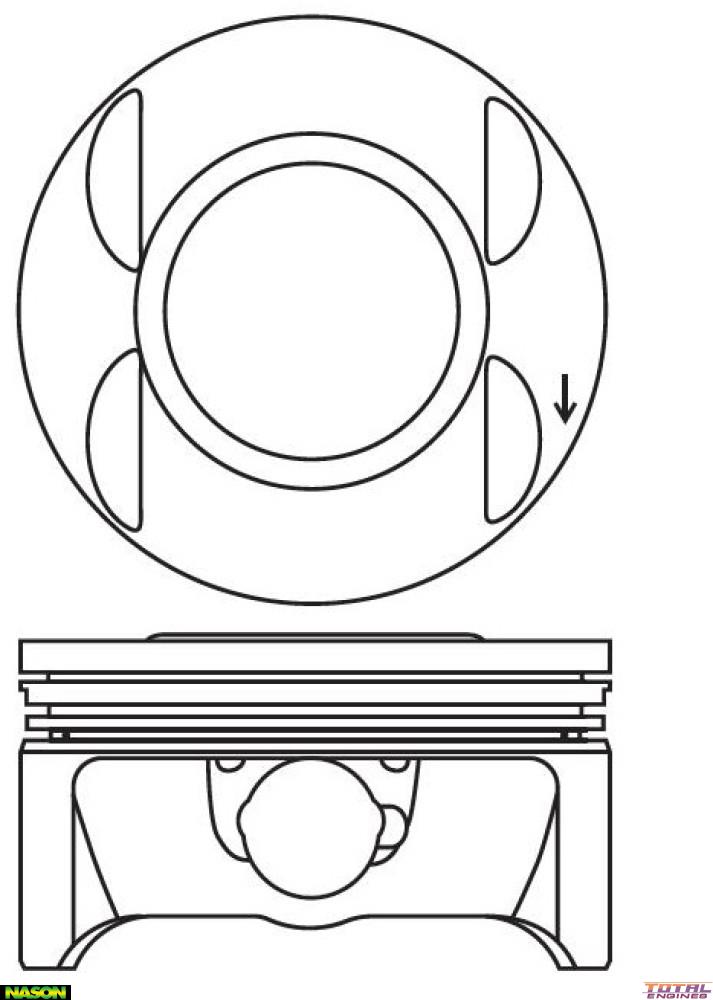

Nason Piston & pin set - 4P1287-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 80.50mm
Size: Std
Head Type: Dome Top with 4 Valve Reliefs
Piston Type: Cast
Length: 45.10mm
Comp Height: 25.50mm + 0.80mm
Pin Size: 19.00mm x 49.80mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5185

Description

Suits Z18XER

Anodized Head, Top & 2nd Ring Lands
