Nason >> Nason Piston & pin set - 4P1294-0.50

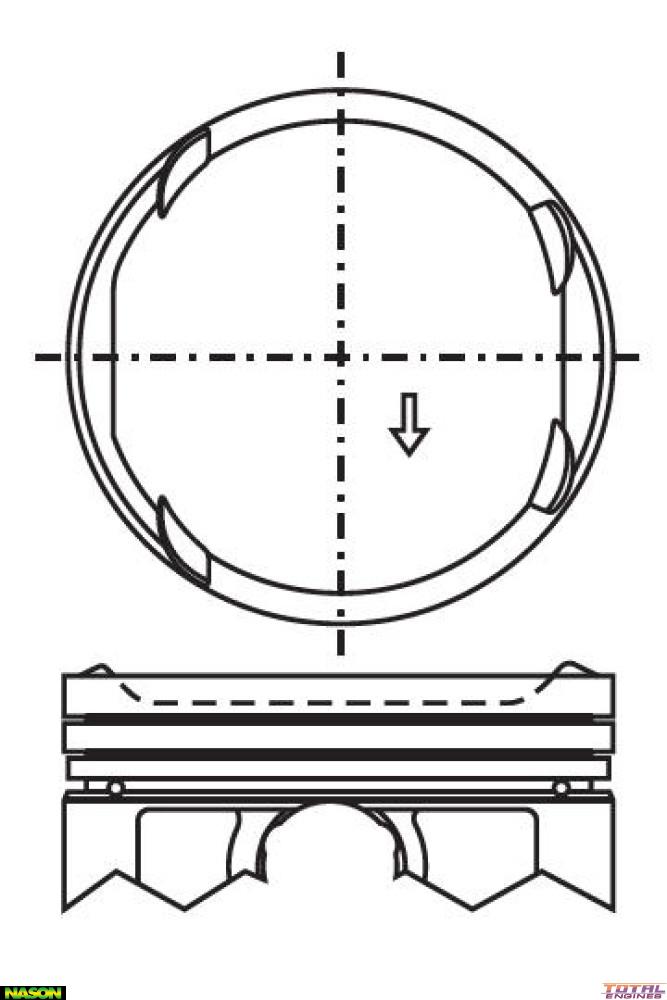

Nason Piston & pin set - 4P1294-0.50

Part
Nason logo

Nason Piston & pin set - 4P1294-0.50

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2C5147
Oil Ring Width: 2.00mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 21.97mm x 52.00mm
Comp Height: 29.10mm + 4.20mm
Length: 57.40mm
Piston Type: Cast
Head Type: Dome Top with 4 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 87.00mm
Piston Set: 4 x Piston & Pins
