Nason Piston & pin set - 4P1294-STD

Part

Nason Piston & pin set - 4P1294-STD

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	87.00mm
Size:	Std

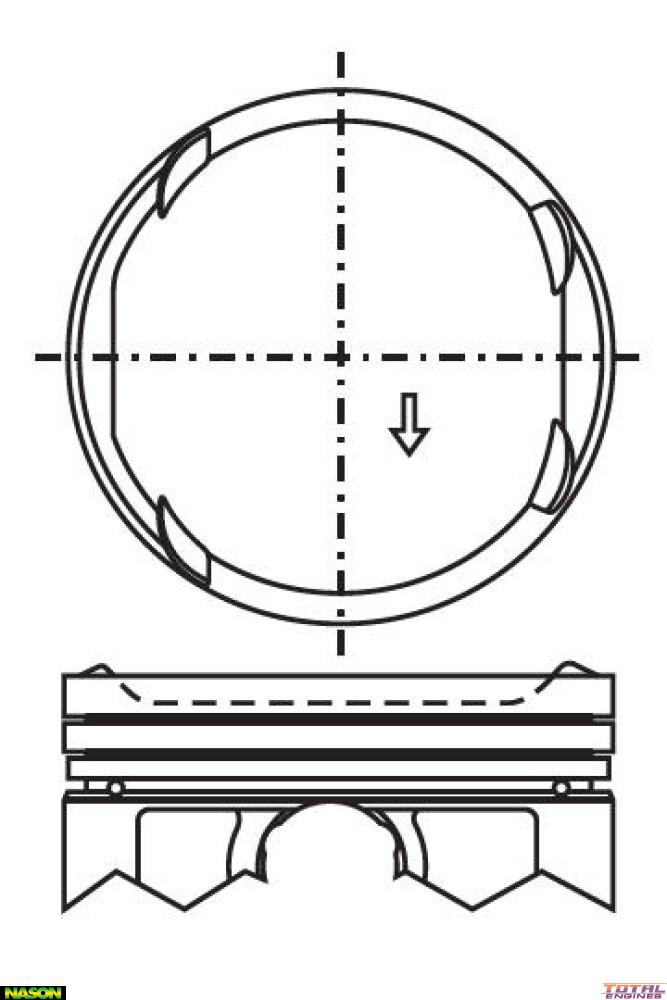

Head Type:	Dome Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	57.40mm
Comp Height:	29.10mm + 4.20mm
Pin Size:	21.97mm x 52.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.00mm
Ring Set:	2C5147
