Nason >> Nason Piston & pin set - 4P1295-1.00

Nason Piston & pin set - 4P1295-1.00

Part
Nason logo

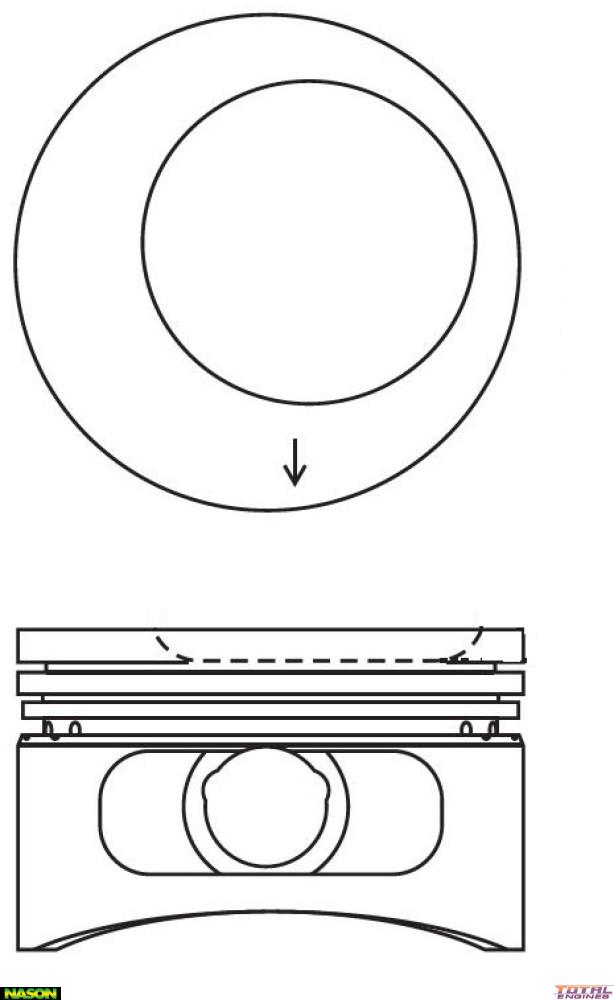

Nason Piston & pin set - 4P1295-1.00

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2M4601 or 4601
Oil Ring Width: 3.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Pres Fit
Pin Size: 21.00mm x 61.50mm
Comp Height: 30.10mm - 5.00mm
Length: 55.40mm
Piston Type: Cast
Head Type: Dish Top
Size: 1.00mm / .040"
Std Bore Size: 86.00mm
Piston Set: 4 x Piston & Pins

Description

56.87mm Bowl X 5.00mm
