Nason >> Nason Piston & pin set - 4P1296-1.00

Nason Piston & pin set - 4P1296-1.00

Part
Nason logo

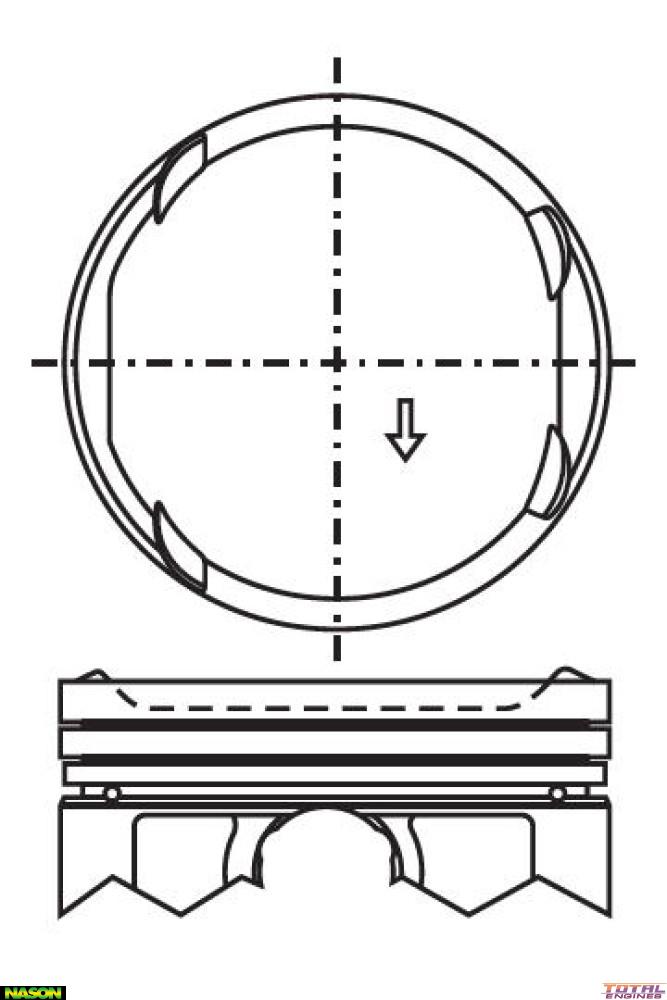

Nason Piston & pin set - 4P1296-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 80.50mm
Size: 1.00mm / .040"
Head Type: Dome/Dish Top
Piston Type: Cast
Length: 51.00mm
Comp Height: 30.90mm + 2.3mm - 4.8mm
Pin Size: 20.00mm x 50.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.00mm
2nd Ring Width: 1.00mm
Oil Ring Width: 1.50mm
Ring Set: 2C4113

Description

Anodized Head, Top & 2nd Ring Lands
