Nason >> Nason Piston & pin set - 4P1297-0.50

Nason Piston & pin set - 4P1297-0.50

Part
Nason logo

Nason Piston & pin set - 4P1297-0.50

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2M5664 or 5664
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 67.00mm
Comp Height: 34.60mm - 0.50mm
Length: 71.10mm
Piston Type: Cast

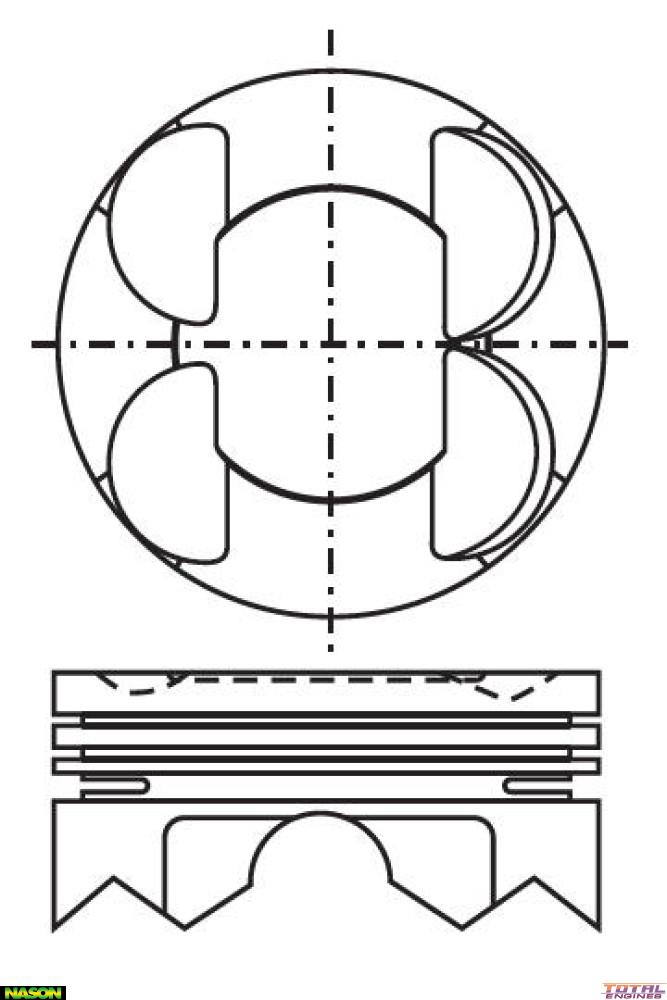

Head Type: Dish Top with 4 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 86.00mm
Piston Set: 4 x Piston & Pins
