Nason >> Nason Piston & pin set - 4P1298-0.50

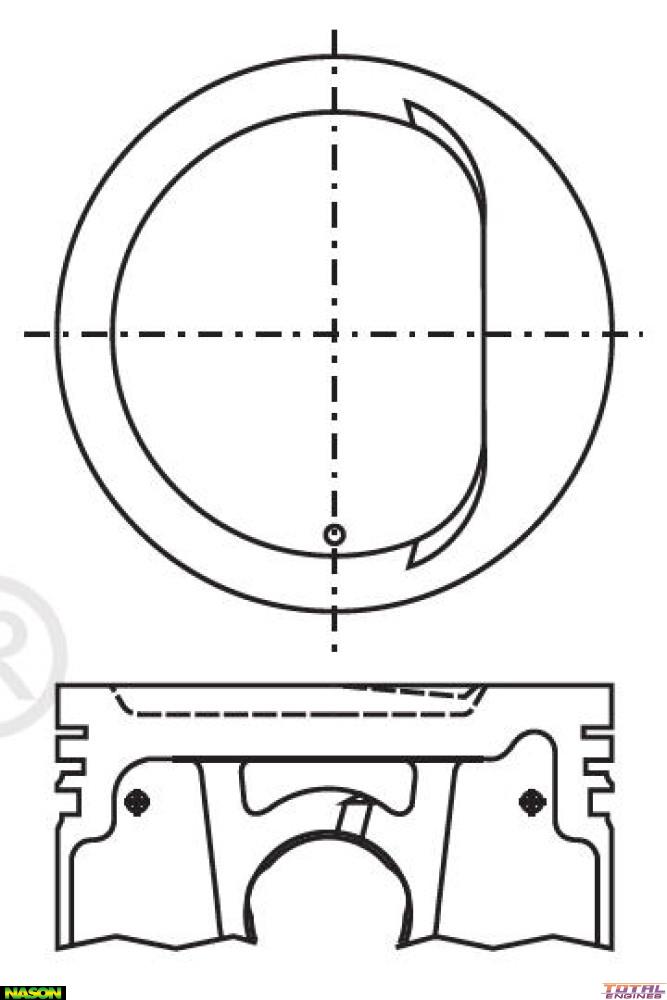

Nason Piston & pin set - 4P1298-0.50

Part
Nason logo

Nason Piston & pin set - 4P1298-0.50

$286.36

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 59.00mm
Comp Height: 35.50mm - 4.40mm
Pin Size: 24.00mm x 61.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 5281
Size: 0.50mm Oversize
