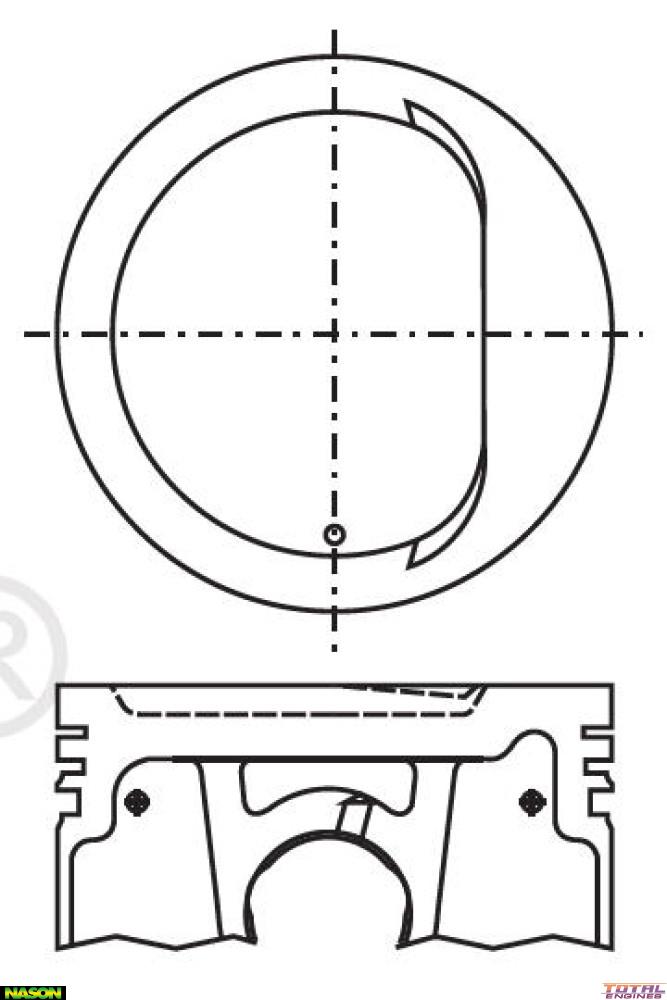

Nason Piston & pin set - 4P1298-1.00

Part

Nason Piston & pin set - 4P1298-1.00

Out Of Stock

Specifications
Size:	1.00mm Oversize
Ring Set:	5281
Oil Ring Width:	4.00mm
2nd Ring Width:	1.50mm
Top Ring Width:	1.75mm
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Full Floating
Pin Size:	24.00mm x 61.00mm
Comp Height:	35.50mm - 4.40mm
Length:	59.00mm
Piston Type:	Cast
Head Type:	Dish Top with 2 Valve Reliefs
Size:	1.00mm / .040"
Std Bore Size:	86.00mm
Piston Set:	4 x Piston & Pins
