Nason Piston & Pin Set - 4P1302-0.50

Part

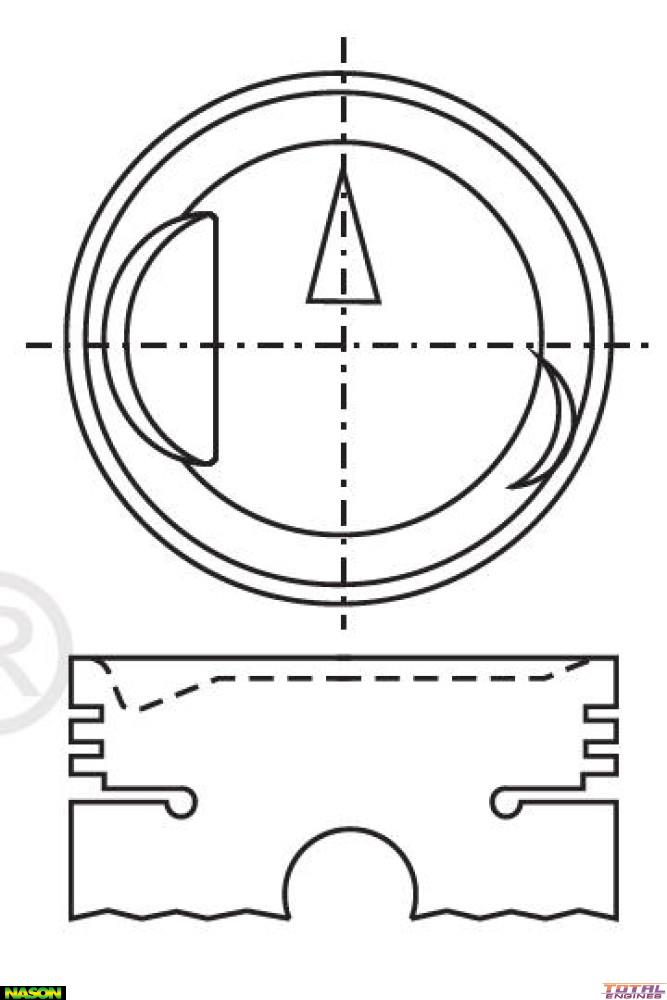

Nason Piston & Pin Set - 4P1302-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	76.90mm
Size:	0.50mm / .020"
Head Type:	Dish Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	70.50mm
Comp Height:	33.60mm - 2.80mm
Pin Size:	19.00mm x 64.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
Ring Set:	2C675 or 675
Size:	0.50mm Oversize
