Nason >> Nason Piston & pin set - 4P1352-1.00

Nason Piston & pin set - 4P1352-1.00

Part
Nason logo

Nason Piston & pin set - 4P1352-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 1.00mm / .040"

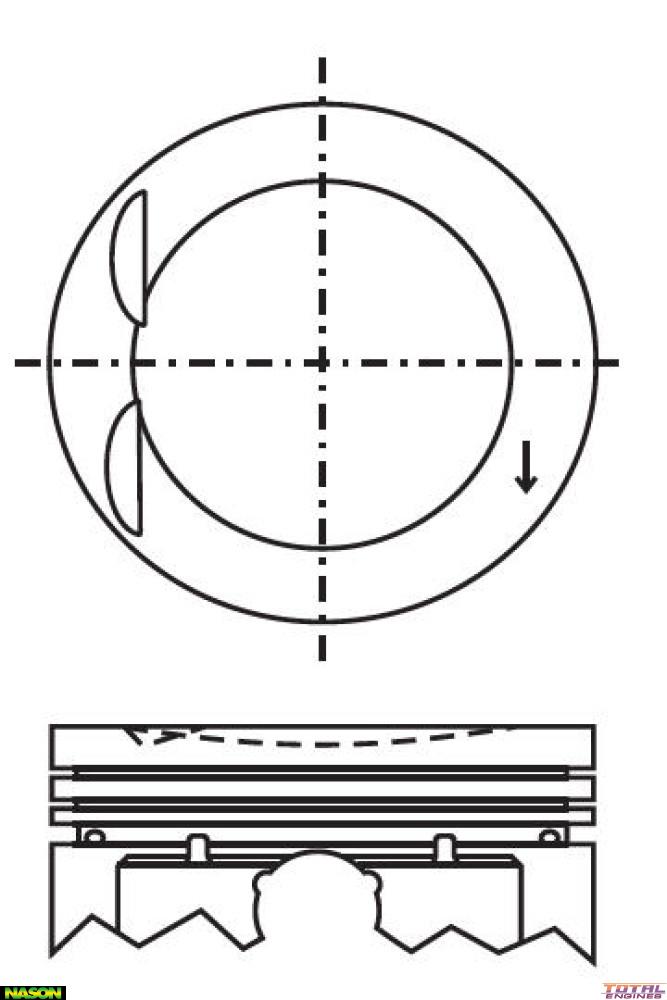

Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 49.10mm
Comp Height: 29.10mm - 0.70mm
Pin Size: 19.00mm x 56.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2M4601 or 4601

Description

Repalces 4MKRY2989
