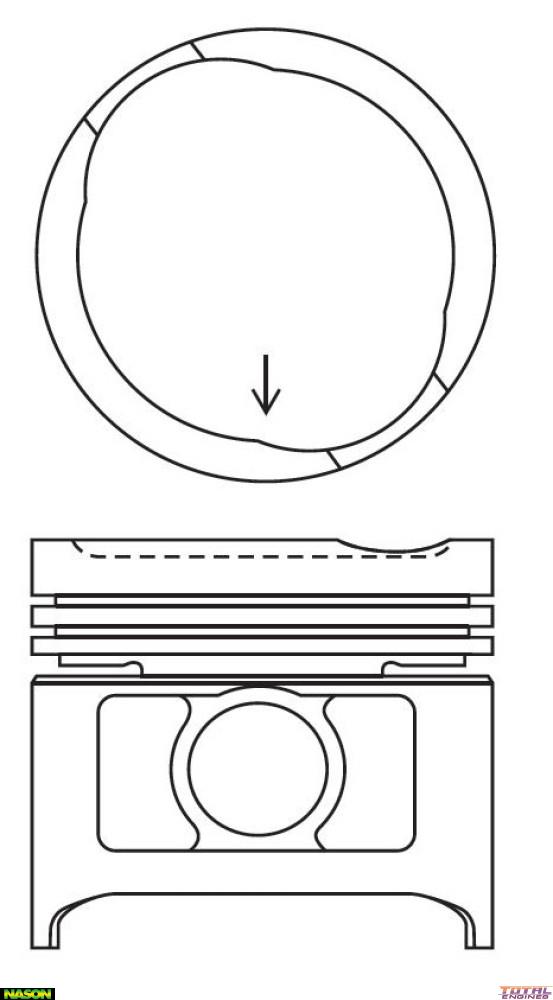

Nason Piston & pin set - 4P1361-1.50

Part

Nason Piston & pin set - 4P1361-1.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	80.00mm
Size:	1.50mm / .060"
Head Type:	Dish Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	72.10mm
Comp Height:	40.00mm - 3.10mm
Pin Size:	23.00mm x 70.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.75mm
Oil Ring Width:	4.00mm
Ring Set:	2C9519 or 9519
Size:	1.50mm Oversize
