Nason >> Nason Piston & pin set - 4P1365-0.50

Nason Piston & pin set - 4P1365-0.50

Part
Nason logo

Nason Piston & pin set - 4P1365-0.50

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 5300
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 20.00mm x 56.00mm
Comp Height: 33.70mm - 9.70mm
Length: 58.70mm
Piston Type: Cast

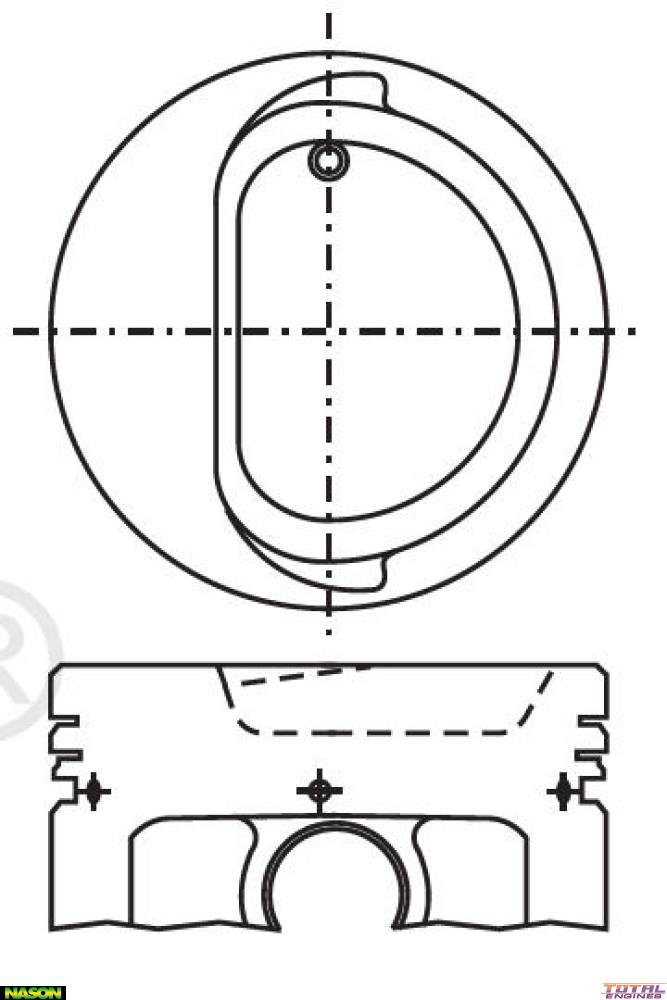

Head Type: Dish Top with 2 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 80.50mm
Piston Set: 4 x Piston & Pins

Description

D Shaped Bowl
