Nason >> Nason Piston & pin set - 4P1366-1.00

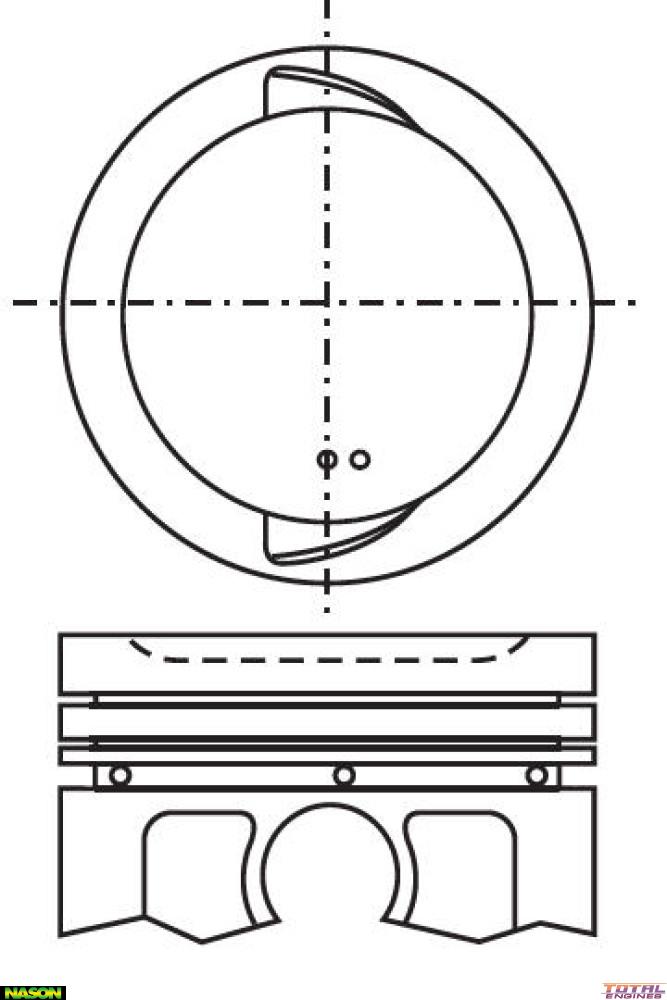

Nason Piston & pin set - 4P1366-1.00

Part
Nason logo

Nason Piston & pin set - 4P1366-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 80.50mm
Size: 1.00mm / .040"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 58.70mm
Comp Height: 33.80mm - 6.20mm
Pin Size: 20.00mm x 56.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 5300

Description

Round Bowl
