Nason >> Nason Piston & pin set - 4P1375-0.50

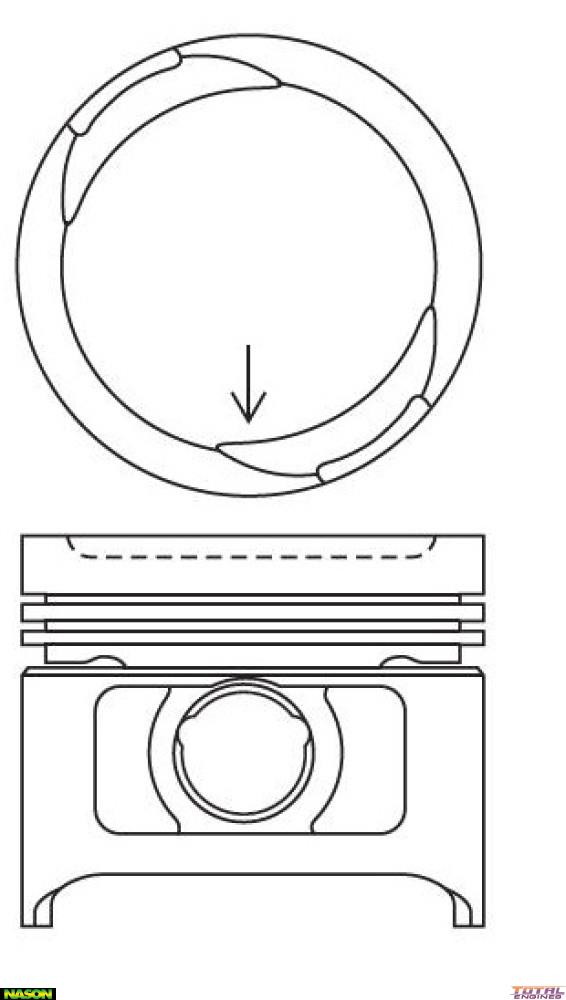

Nason Piston & pin set - 4P1375-0.50

Part
Nason logo

Nason Piston & pin set - 4P1375-0.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 84.80mm
Size: 0.50mm / .020"
Head Type: Dish Top With 2 Valve Reliefs
Piston Type: Cast
Length: 72.00mm
Comp Height: 40.00mm - 2.30mm
Pin Size: 23.00mm x 70.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.75mm
Oil Ring Width: 4.00mm
Ring Set: 2M6193 or 6193

Description

Dish Top with 2 Valve Reliefs

Replaces 4KRY2935
