Nason Piston & Pin Set - 4P1394-1.00

Part

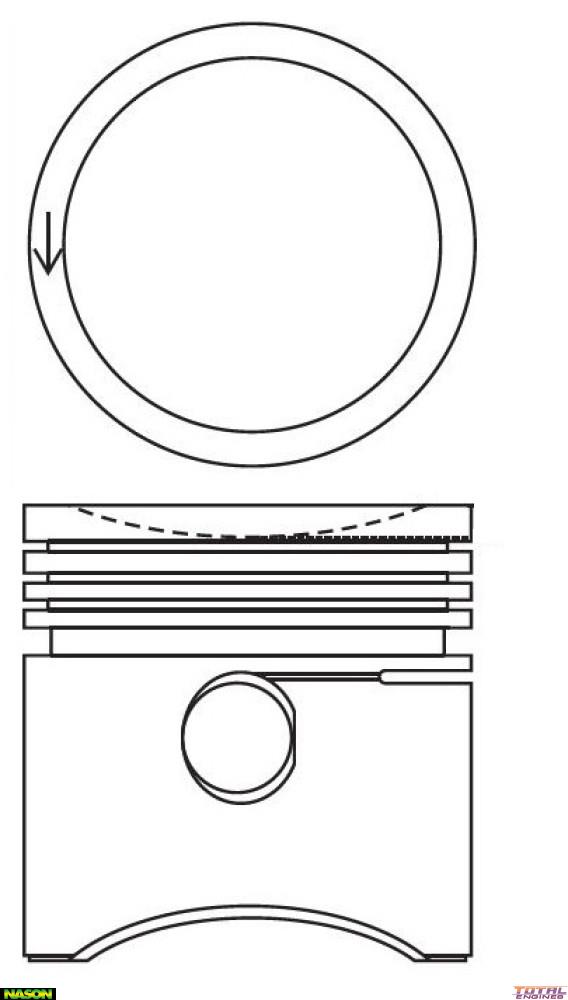

Nason Piston & Pin Set - 4P1394-1.00

Out Of Stock

Specifications
Ring Set:	4732
Oil Ring Width:	5/32"
3rd Ring Width:	1/16"
2nd Ring Width:	1/16"
Top Ring Width:	1/16"
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Full Floating
Pin Size:	15.86mm x 55.50mm
Comp Height:	34.09mm - 4.90mm
Length:	65.77mm
Piston Type:	Cast
Head Type:	Dish Top
Size:	1.00mm / .040"
Std Bore Size:	64.56mm
Piston Set:	4 x Piston & Pins
