Nason Piston & pin set - 4P1396-1.00

Part

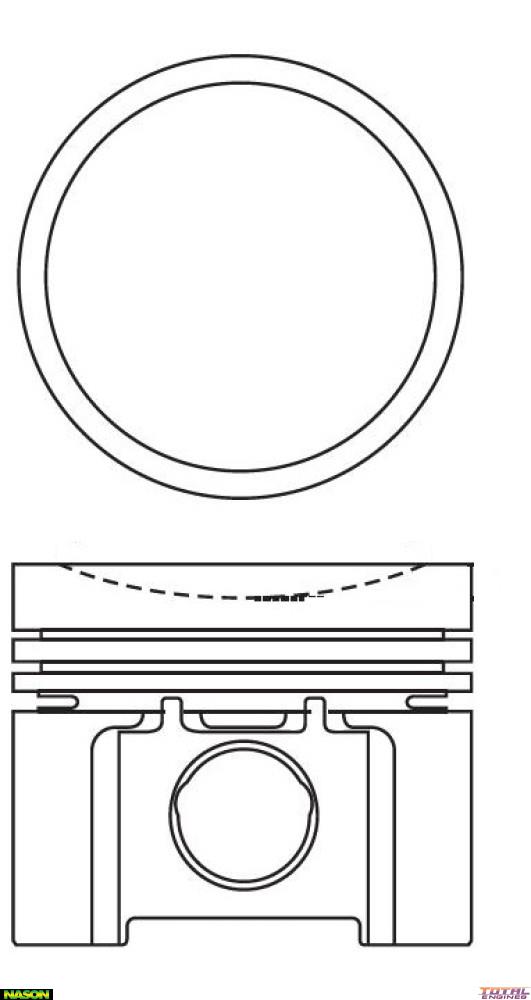

Nason Piston & pin set - 4P1396-1.00

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	70.62mm
Size:	1.00mm / .040"
Head Type:	Dish Top
Piston Type:	Cast
Length:	58.74mm
Comp Height:	38.80mm - 5.70mm
Pin Size:	20.64mm x 55.20mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	4355
