Nason >> Nason Piston & pin set - 4P1403-STD

Nason Piston & pin set - 4P1403-STD

Part
Nason logo

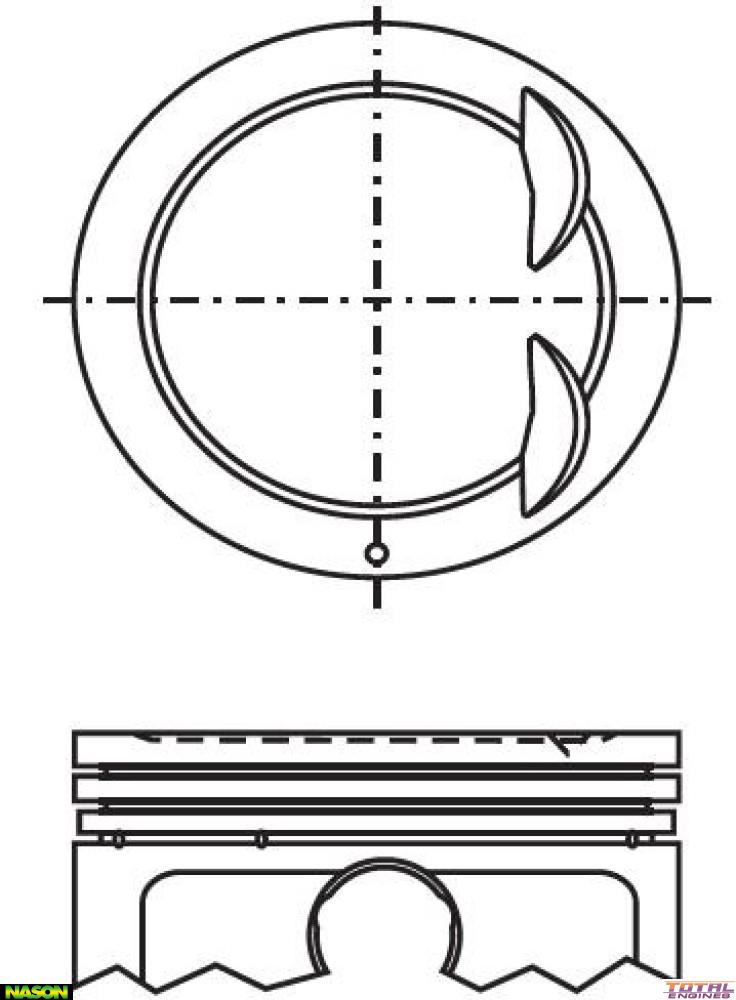

Nason Piston & pin set - 4P1403-STD

Out Of Stock

Specifications
Ring Set: 2C4504
Oil Ring Width: 2.00mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Press Fit
Pin Size: 18.00mm x 52.50mm
Comp Height: 26.90mm - 1.00mm
Length: 43.90mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: Std
Std Bore Size: 77.00mm
Piston Set: 4 x Piston & Pins

Description

Anodized Top & 2nd Ring Lands
