Nason >> Nason Piston & pin set - 4P1417-0.50

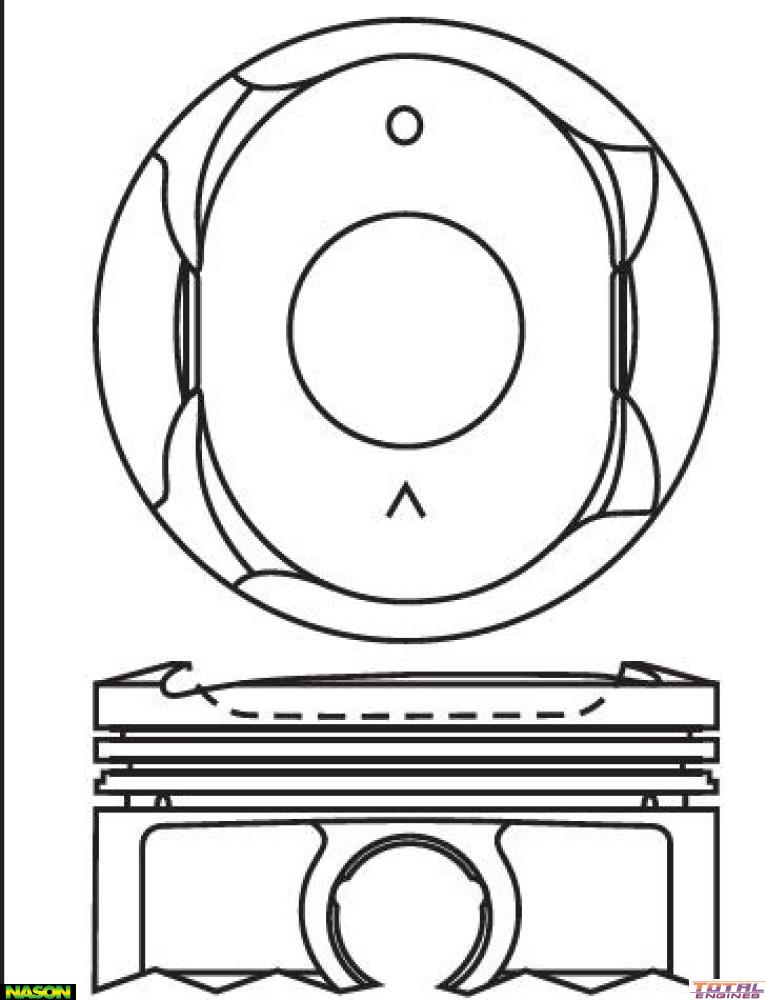

Nason Piston & pin set - 4P1417-0.50

Part
Nason logo

Nason Piston & pin set - 4P1417-0.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.00mm
Size: Std
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 47.80mm
Comp Height: 30.70mm - 6.80mm
Pin Size: 18.00mm x 53.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.00mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5111

Description

Suits From 11/2005 On

Anodized Head, Top & 2nd Ring Lands
