Nason >> Nason Piston & pin set - 4P1427-0.50

Nason Piston & pin set - 4P1427-0.50

Part
Nason logo

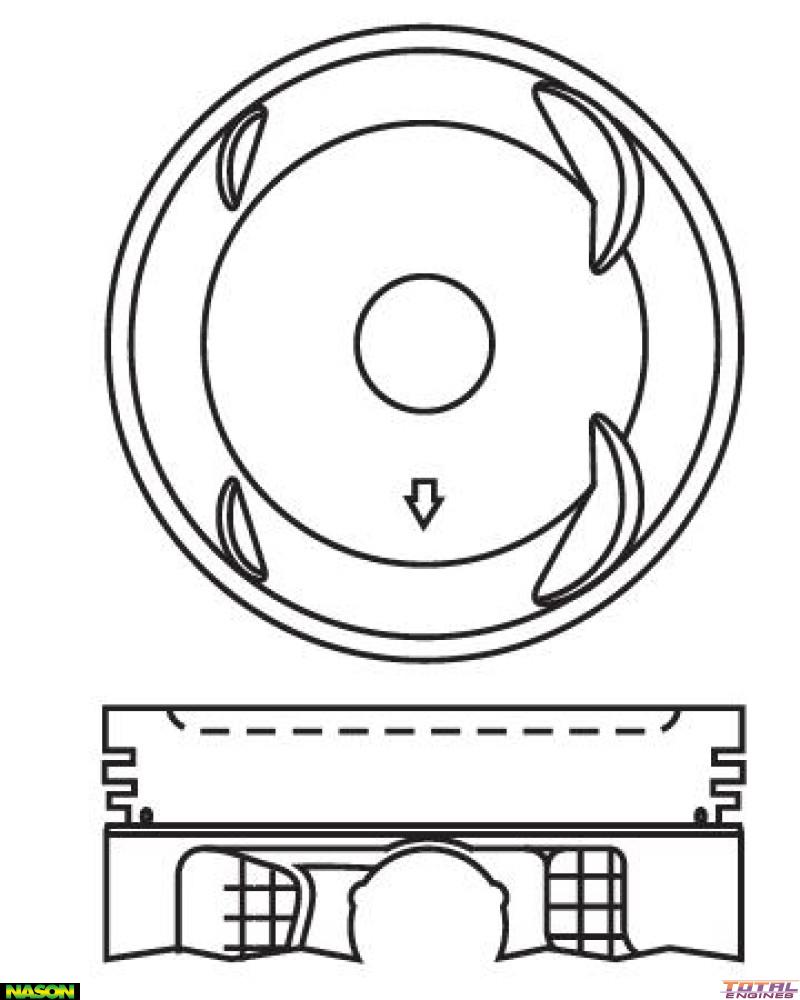

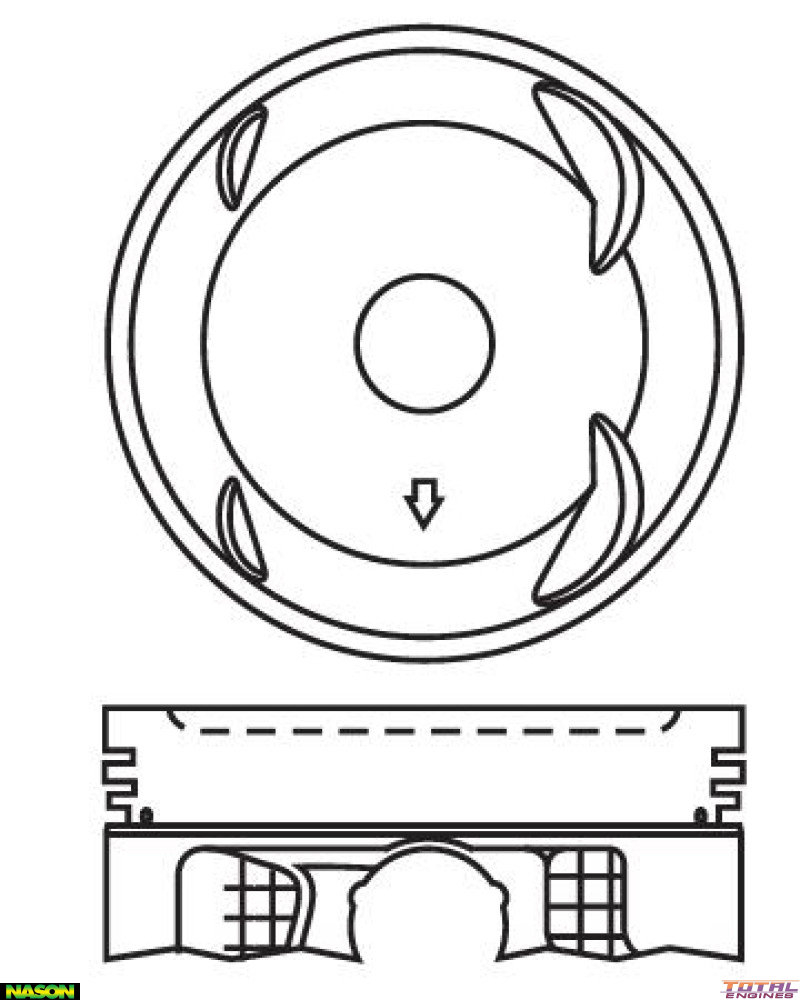

Nason Piston & pin set - 4P1427-0.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 85.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 65.00mm
Comp Height: 30.50mm - 3.20mm
Pin Size: 22.00mm x 57.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.80mm
Ring Set: 2C4654

Description

Suits F22B1
