Nason Piston & pin set - 4P1428-STD

Part

Nason Piston & pin set - 4P1428-STD

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	76.50mm
Size:	Std

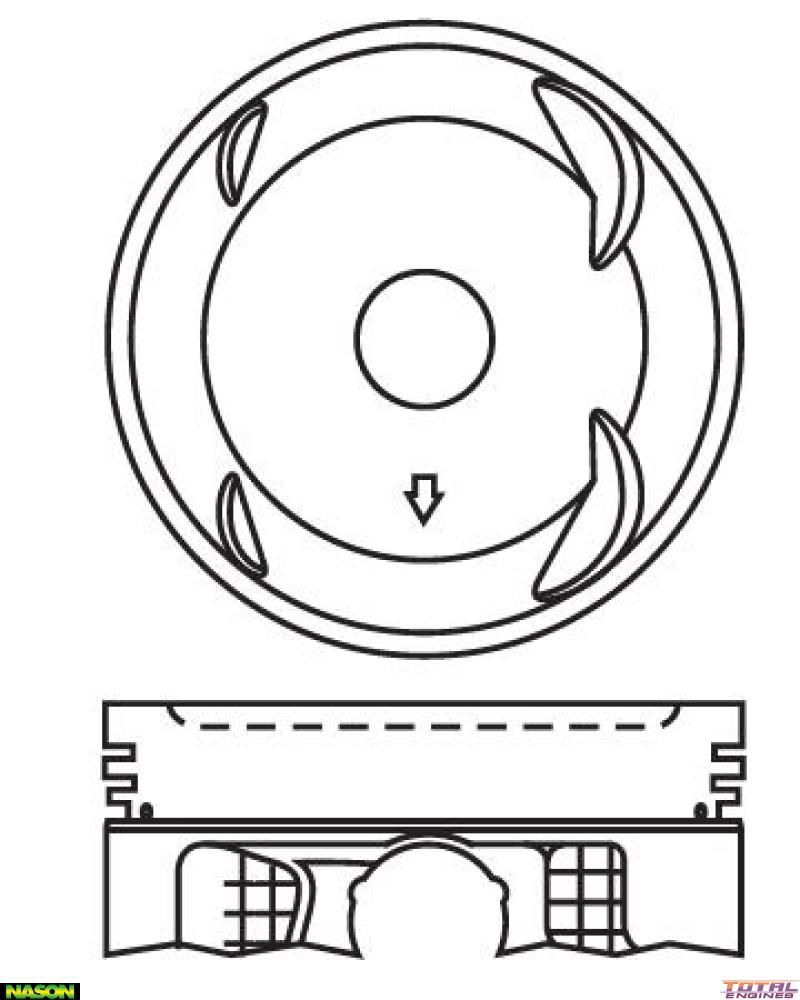

Head Type:	Dome Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	51.90mm
Comp Height:	28.30mm + 0.60mm
Pin Size:	18.00mm x 56.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2C4819 or 4819
