Nason >> Nason Piston & pin set - 4P1432-0.50

Nason Piston & pin set - 4P1432-0.50

Part
Nason logo

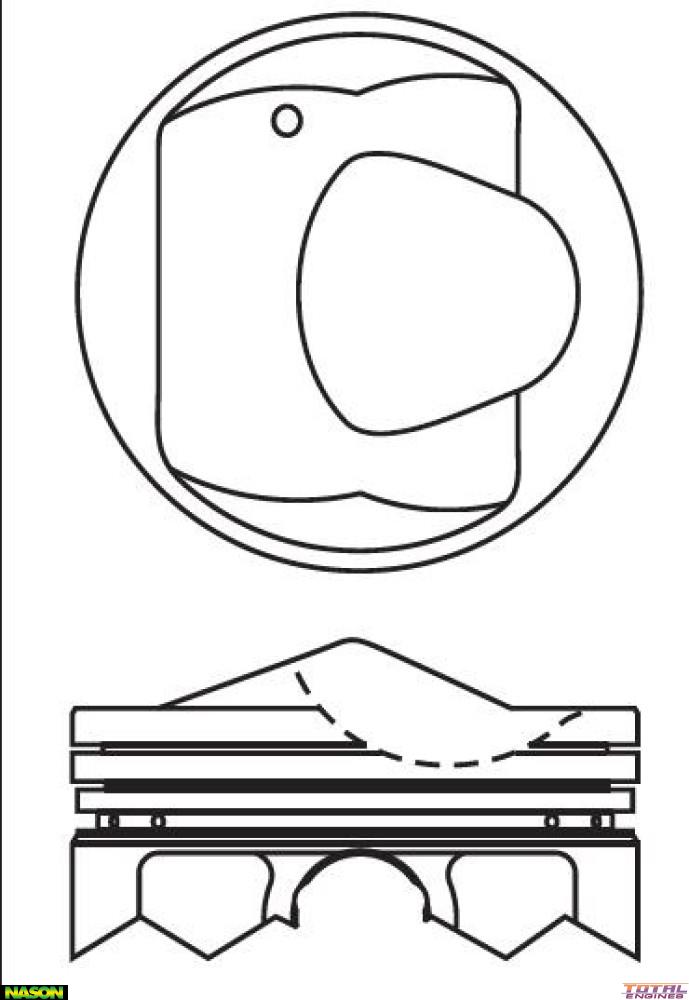

Nason Piston & pin set - 4P1432-0.50

$137.84

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 81.00mm
Size: 0.50mm / .020"
Head Type: Dome Top
Piston Type: Cast
Length: 60.50mm
Comp Height: 30.10mm + 10.40mm
Pin Size: 19.00mm x 58.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.80mm
Ring Set: 2C4769

Description

See Images
