Nason >> Nason Piston & pin set - 4P1433-0.75

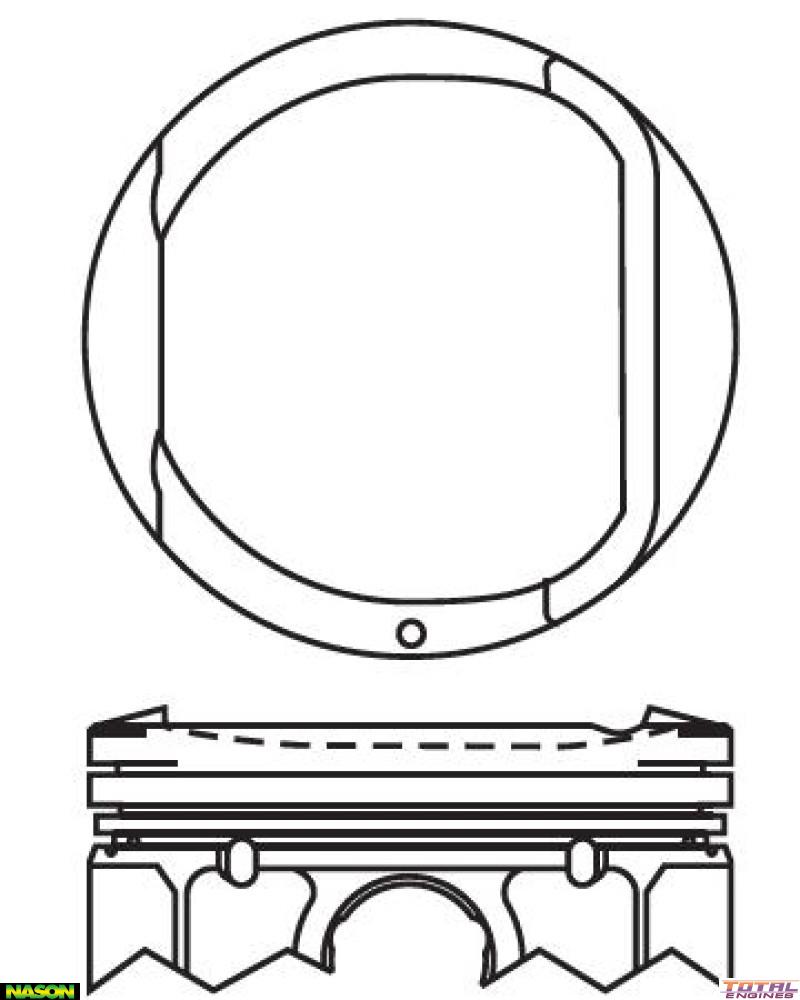

Nason Piston & pin set - 4P1433-0.75

Part
Nason logo

Nason Piston & pin set - 4P1433-0.75

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 78.00mm
Size: 0.75mm / .030"
Head Type: Dish Top
Piston Type: Cast
Length: 49.20mm
Comp Height: 28.70mm - 3.80mm
Pin Size: 19.00mm x 53.50mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C4439

Description

Anodized Top & 2nd Ring Lands
