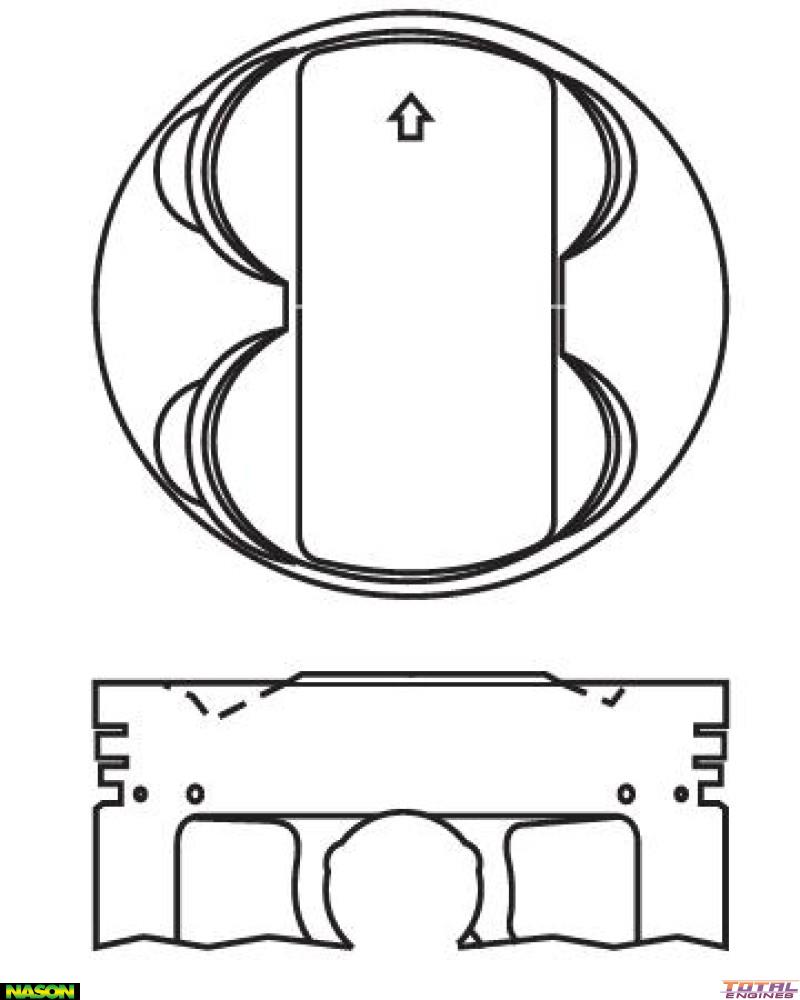

Nason Piston & pin set - 4P1435-STD

Part

Nason Piston & pin set - 4P1435-STD

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	87.00mm
Size:	Std
Head Type:	Dome Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	61.80mm
Comp Height:	31.00mm + 0.80mm
Pin Size:	22.00mm x 57.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.80mm
Ring Set:	2C4767

Description

Suits H22A4
