Nason >> Nason Piston & pin set - 4P1451-STD

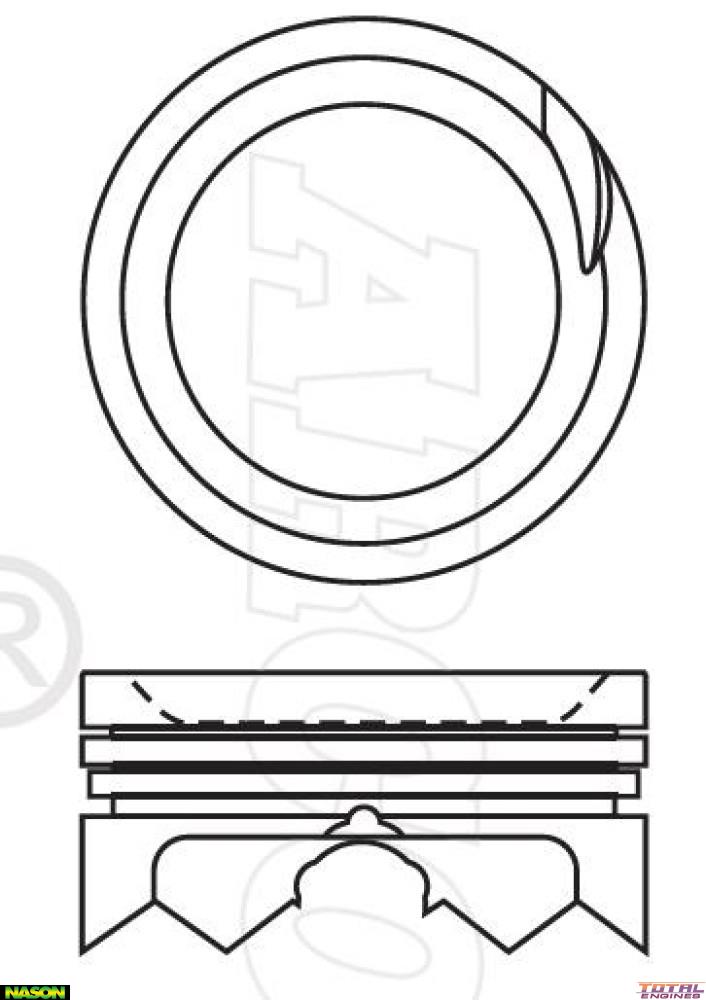

Nason Piston & pin set - 4P1451-STD

Part
Nason logo

Nason Piston & pin set - 4P1451-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.50mm
Size: Std
Head Type: Dish Top with 1 Valve Reliefs
Piston Type: Cast
Length: 54.40mm
Comp Height: 31.40mm - 6.70mm
Pin Size: 18.00mm x 47.50mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4782 or 4782
