Nason >> Nason Piston & pin set - 4P1492-0.50

Nason Piston & pin set - 4P1492-0.50

Part
Nason logo

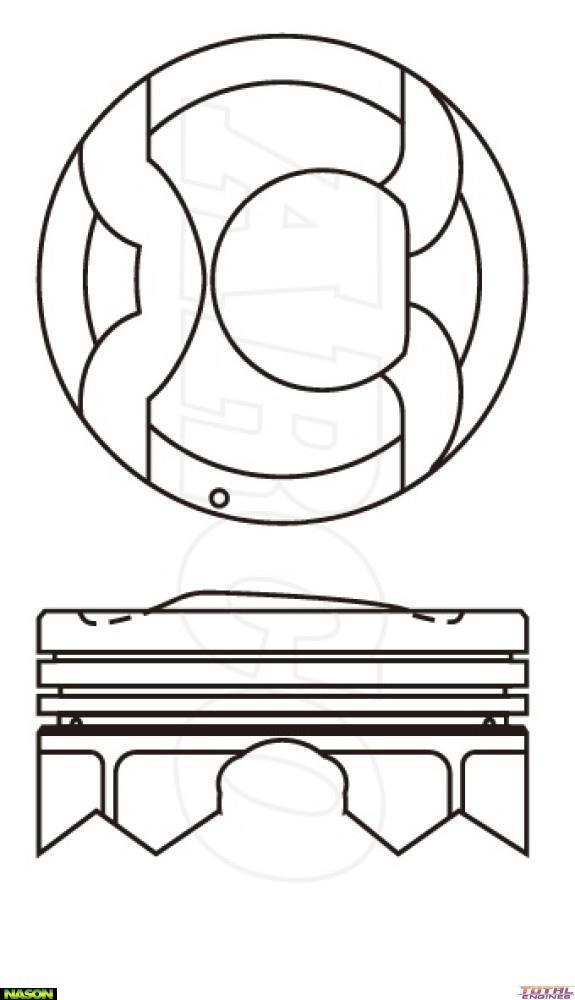

Nason Piston & pin set - 4P1492-0.50

$299.23

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 77.00mm
Size: Std
Head Type: Dome Top 4 Valve Relief
Piston Type: Cast
Length: 48.00mm
Comp Height: 26.80mm + 3.00mm
Pin Size: 18.00mm x 52.50mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C4504

Description

Anodized Top and 2nd Ring Land
