Nason Piston & pin set - 4P1499-0.25

Part
Nason logo

Nason Piston & pin set - 4P1499-0.25

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 71.00mm
Size: 0.25mm / .010"

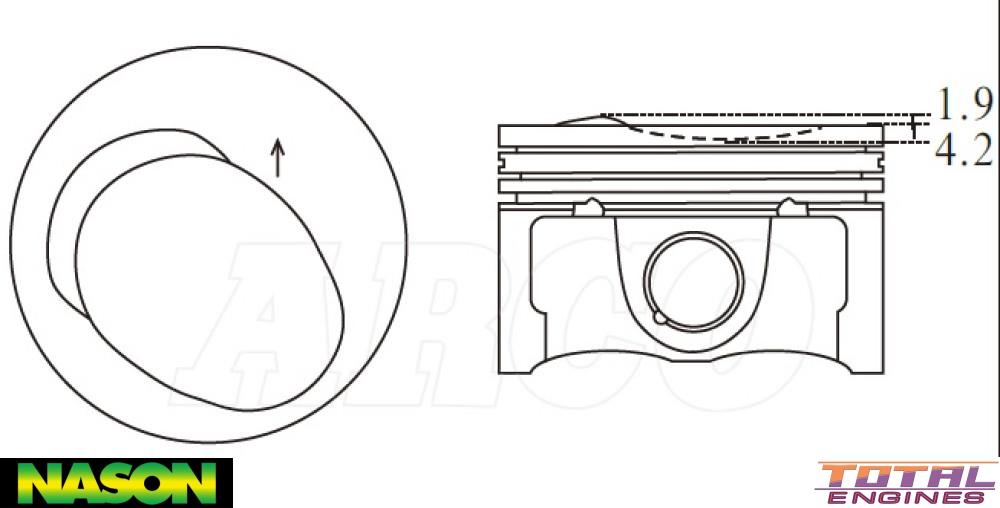

Head Type: Dish Top
Piston Type: Cast
Length: 46.90mm
Comp Height: 29.00mm - 4.20mm
Pin Size: 19.00mm x 42.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2N4126

Description

Anodized Head & 2nd Ring Land
