Nason Piston & pin set - 4P1499-STD

Part

Nason Piston & pin set - 4P1499-STD

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	71.00mm
Size:	Std

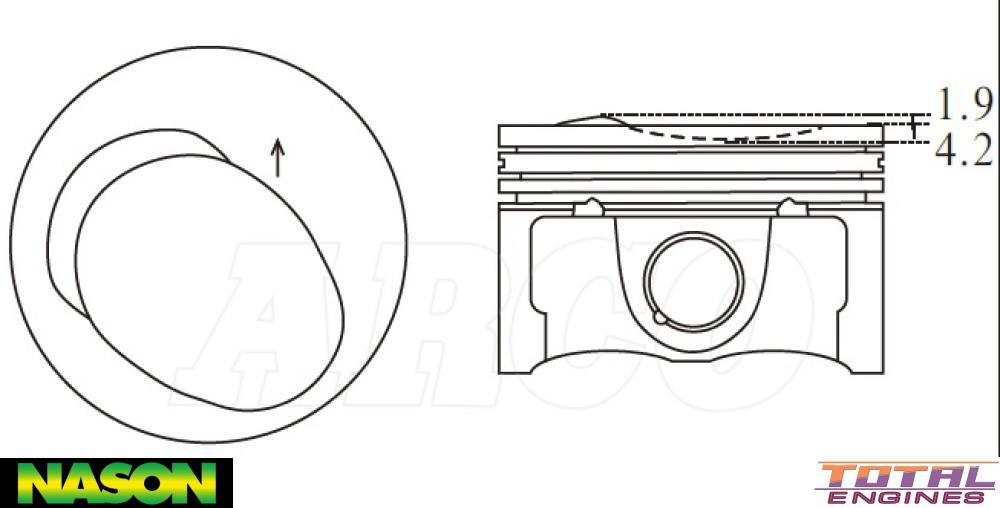

Head Type:	Dish Top
Piston Type:	Cast
Length:	46.90mm
Comp Height:	29.00mm - 4.20mm
Pin Size:	19.00mm x 42.00mm
Pin Type:	Press Fit
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.00mm
Ring Set:	2N4126

Description

Anodized Head & 2nd Ring Land
