Nason >> Nason Piston & pin set - 5DP2046-STD

Nason Piston & pin set - 5DP2046-STD

Part
Nason logo

Nason Piston & pin set - 5DP2046-STD

$768.98

Specifications
Piston Set: 5 x Pistons & Pins
Std Bore Size: 89.90mm
Size: STD
Head Type: Combustion Bowl
Piston Type: Cast
Length: 75.40mm

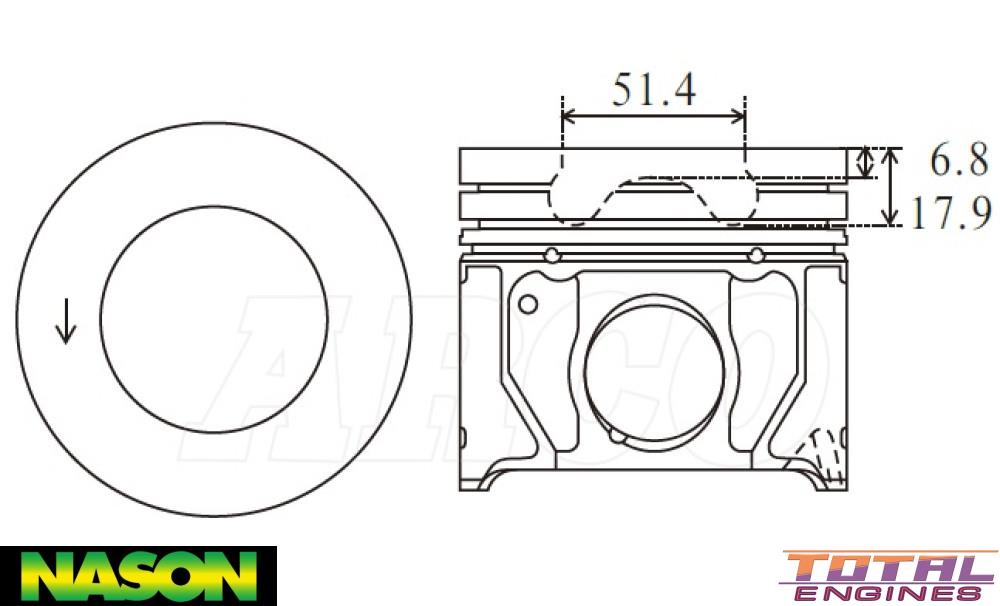

Comp Height: 48.40mm, -6.80mm, -17.90mm
Combustion Bowl OD: 51.40mm
Pin Size: 32.00mm x 74.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 50049-STD x 5 OR RSFP5AT-STD X 1

Description

Alfin, With Oil Gallery Cooling

Replaces PKFP5AT-STD
