Nason Piston & pin set - 6DP2020-1.00

Specifications
Size:	Oversize 1.00mm
Size:	Suits Turbo Upgrade With 33mm Pin
Ring Set:	35898-1.00
Oil Ring Width:	4.00mm
2nd Ring Width:	2.00mm
Top Ring Width:	2.00mm Half Keystone
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Full Floating
Pin Size:	33.00mm x 73.00mm
Comp Height:	49.70mm, -1.60mm
Length:	80.70mm
Piston Type:	Cast

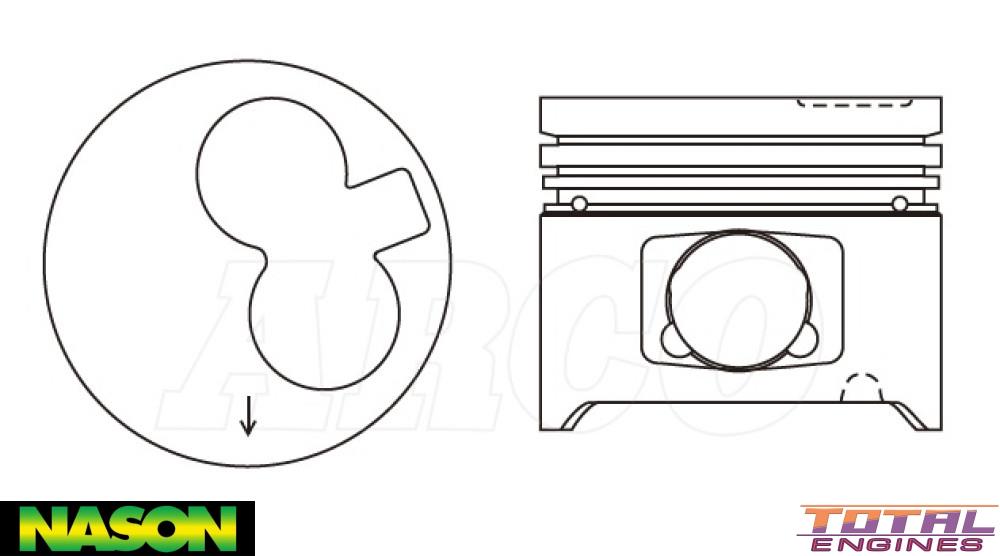

Head Type:	Clover Leaf Combustion Relief
Size:	1.00mm
Std Bore Size:	94.00mm
Piston Set:	6 x Pistons & Pins

Description

Suits Turbo Upgrade - (33mm Pin)

Combustion Bowl OD

Alfin Insert
