Nason >> Nason Piston & pin set - 6DP2022-0.50

Nason Piston & pin set - 6DP2022-0.50

Part
Nason logo

Nason Piston & pin set - 6DP2022-0.50

$714.28

Specifications
Piston Set: 6 x Pistons & Pins
Std Bore Size: 94.00mm
Size: 0.50mm

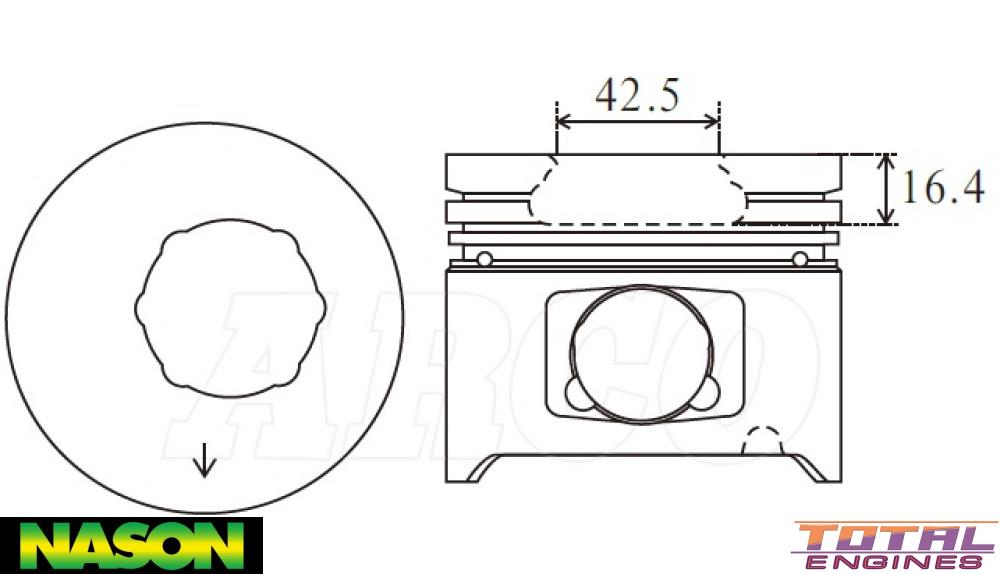

Head Type: Combustion Bowl
Piston Type: Cast
Length: 80.70mm
Comp Height: 49.70mm, -16.40mm
Combustion Bowl OD: 42.50mm
Pin Size: 33.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35898-0.50

Description

Suits From 8/92 With 42.50mm Combustion Bowl

Alfin Insert
