Nason >> Nason Piston & pin set - 6DP2023-STD

Nason Piston & pin set - 6DP2023-STD

Part
Nason logo

Nason Piston & pin set - 6DP2023-STD

Out Of Stock

Specifications
Piston Set: 6 x Pistons & Pins
Std Bore Size: 94.00mm
Size: Std
Head Type: Combustion Bowl
Piston Type: Cast
Length: 80.40mm

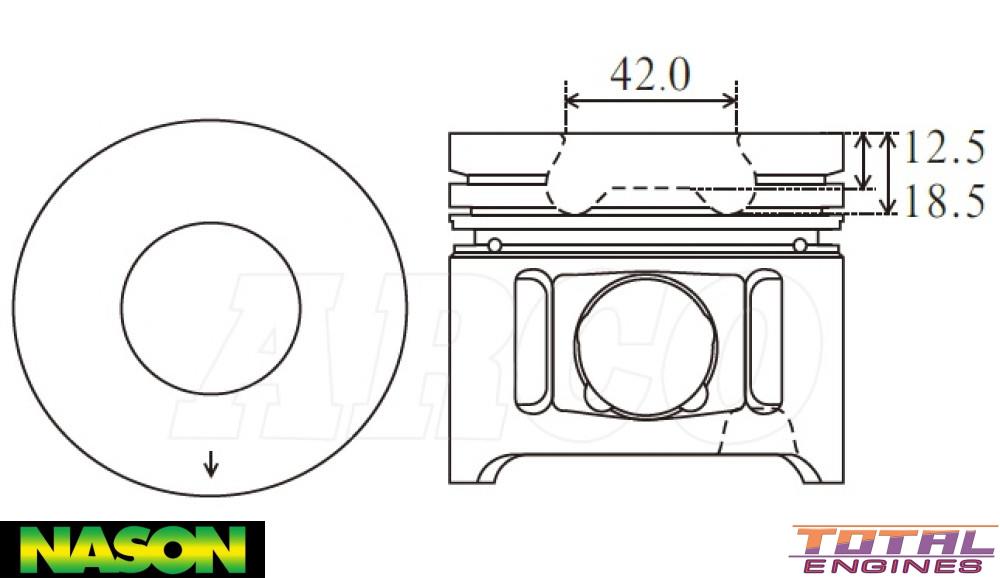

Comp Height: 49.40mm, -12.50mm, -18.50mm
Combustion Bowl OD: 42.00mm
Pin Size: 33.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35898-STD

Description

Suits 1HD-FT

Alfin Insert, With Oil Gallery Cooling
