Nason >> Nason Piston & pin set - 6DP2024-0.50

Nason Piston & pin set - 6DP2024-0.50

Part
Nason logo

Nason Piston & pin set - 6DP2024-0.50

$997.42

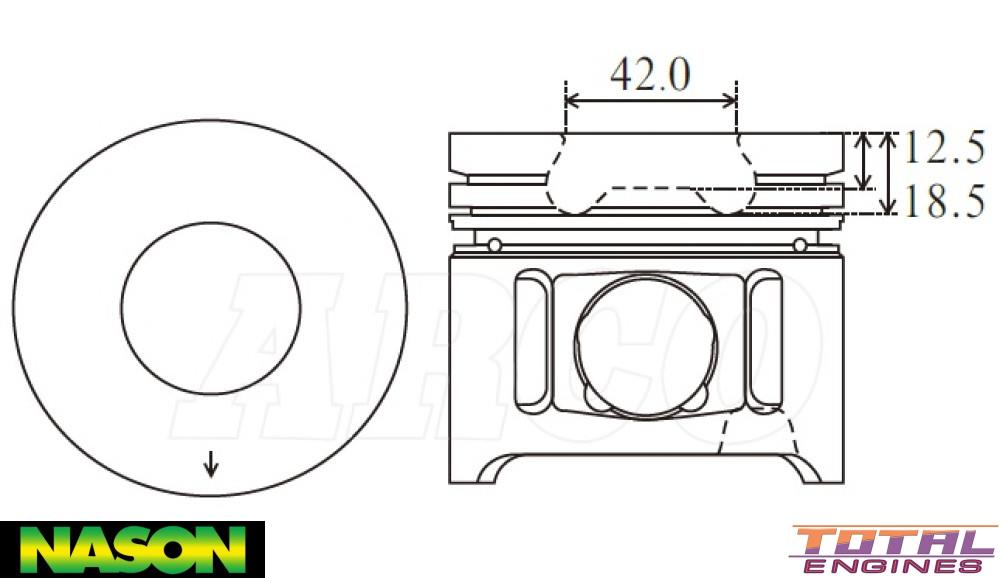

Specifications
Piston Set: 6 x Pistons & Pins
Std Bore Size: 94.00mm
Size: 0.50mm
Head Type: Combustion Bowl
Piston Type: Cast
Length: 80.40mm
Comp Height: 49.40mm, -6.10mm, -18.10mm
Combustion Bowl OD: 45.80mm
Pin Size: 33.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 35970-0.50

Description

Suits 1HD-FTE

Alfin Insert, With Oil Gallery Cooling
