Nason >> Nason Piston & pin set - 6DP2057-0.50

Nason Piston & pin set - 6DP2057-0.50

Part
Nason logo

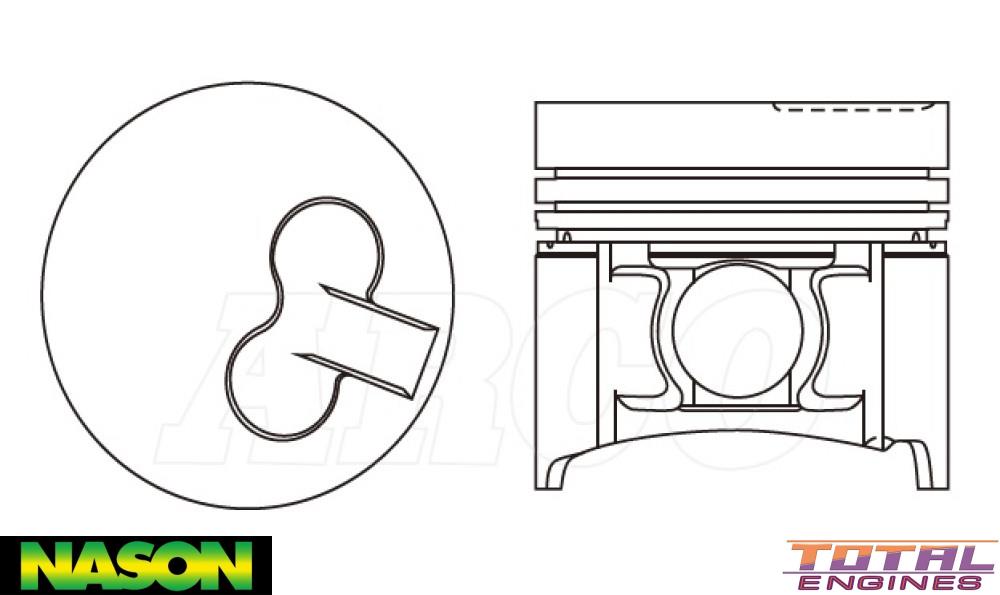

Nason Piston & pin set - 6DP2057-0.50

Out Of Stock

Specifications
Size: With 30mm Pin
Ring Set: 23305-0.50
Oil Ring Width: 3.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 30.00mm x 74.00mm
Comp Height: 50.30mm, -0.50mm, -1.70mm
Length: 86.00mm
Piston Type: Cast
Head Type: Clover Leaf
Size: 0.50mm / .020"
Std Bore Size: 96.00mm
Piston Set: 6 x Pistons & Pins

Description

With 30mm Pin

Combustion Bowl OD

Alfin Insert
