Nason >> Nason Piston & pin set - 6DP2061-0.50

Nason Piston & pin set - 6DP2061-0.50

Part
Nason logo

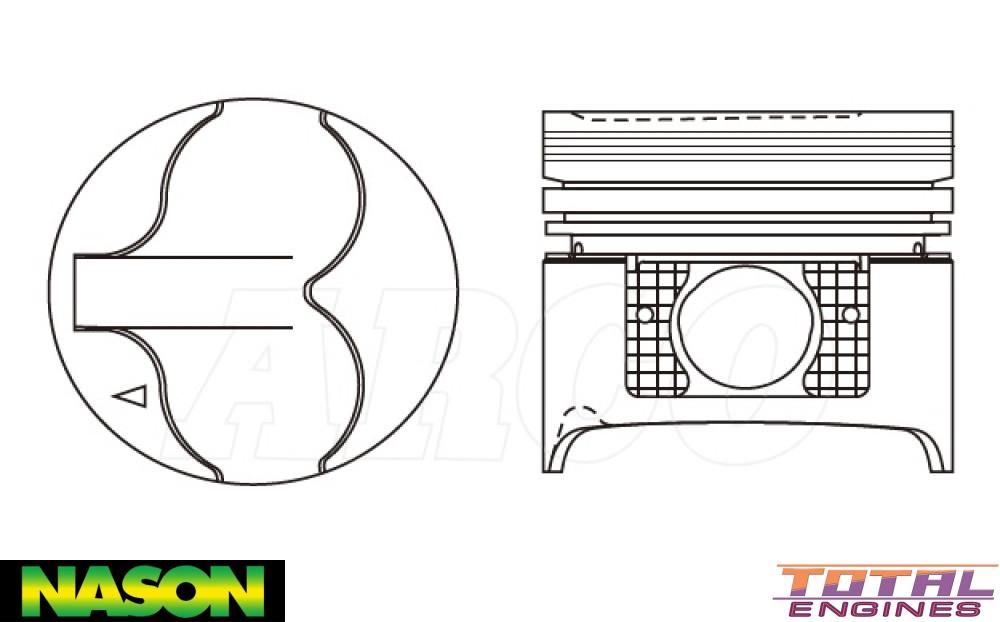

Nason Piston & pin set - 6DP2061-0.50

$965.25

Specifications
Piston Set: 6 x Pistons & Pins
Std Bore Size: 85.00mm
Size: 0.50mm / .020"
Head Type: Flat Top With 2 Valve Reliefs
Piston Type: Cast
Length: 78.30mm
Comp Height: 46.80mm, -0.70mm, -1.80mm
Pin Size: 27.00mm x 61.50mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 23515-0.50

Description

Turbo Intercooled

Combustion Bowl OD

Alfin Insert, Oil Gallery Cooling, Anodized Head

Replaces PKNRD28TI-A-0.50
