Nason Piston & pin set - 6DP2067-1.00

Specifications
Piston Set:	6 x Pistons & Pins
Std Bore Size:	91.00mm
Size:	1.00mm / .040"
Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	91.30mm

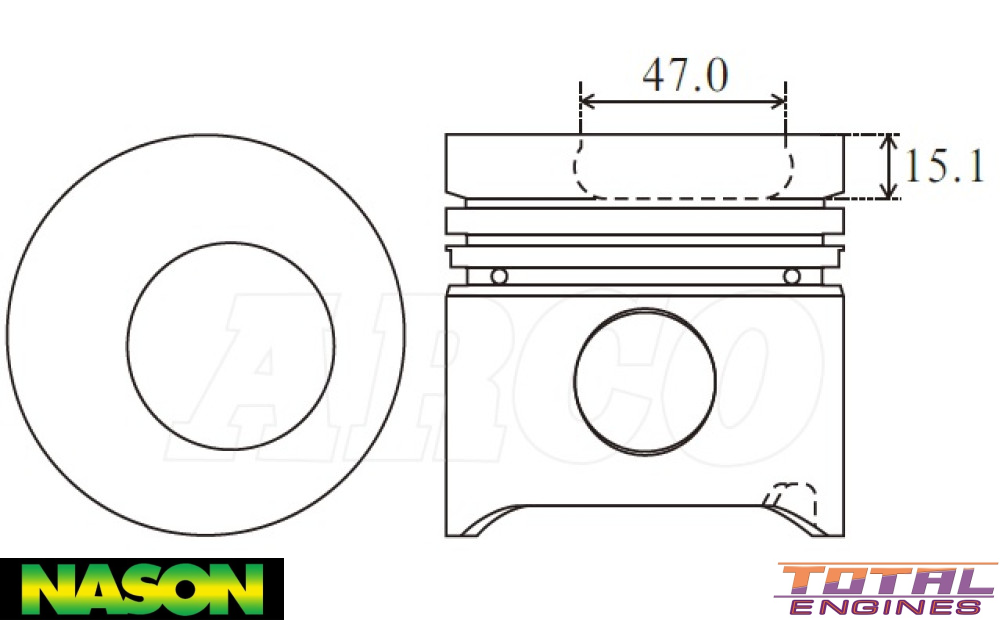

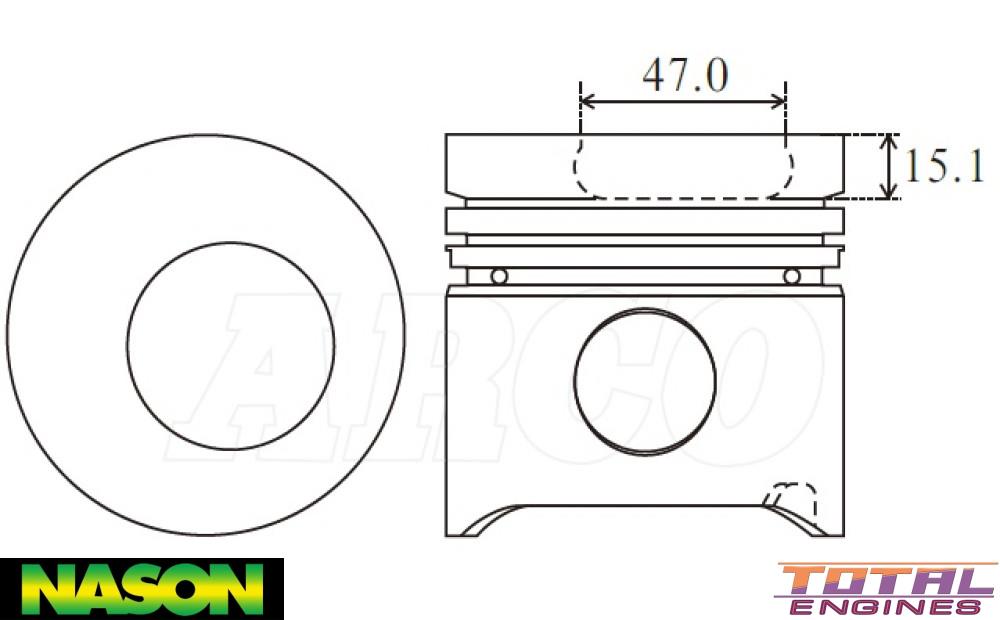

Comp Height:	56.30mm, -15.10mm
Combustion Bowl OD:	47.00mm
Pin Size:	32.00mm x 77.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Half Keystone
2nd Ring Width:	2.50mm
Oil Ring Width:	4.00mm
Ring Set:	35886-1.00

Description

Alfin

Replaces PKT12HT-A-1.00
