Nason >> Nason Piston & pin set - 6P1076-0.50

Nason Piston & pin set - 6P1076-0.50

Part
Nason logo

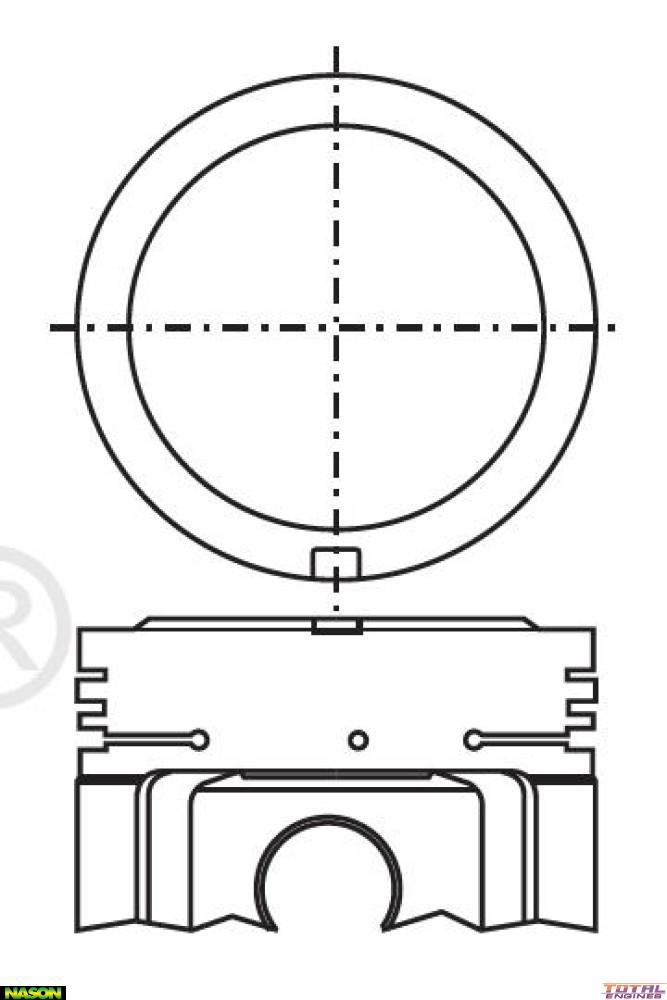

Nason Piston & pin set - 6P1076-0.50

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 94.00mm
Size: 0.50mm / .020"
Head Type: Dome Top
Piston Type: Cast
Length: 95.75mm
Comp Height: 47.55mm + 0.20mm
Pin Size: 25.15mm x 71.80mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M5462 or 5462

Description

Replaces 6KRY2648
