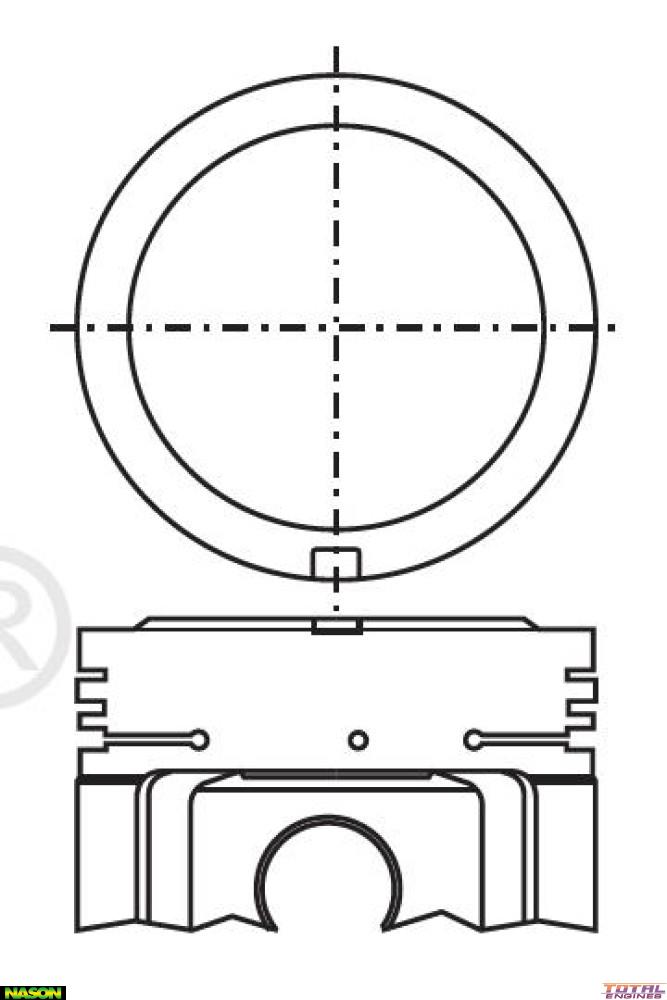

Nason Piston & pin set - 6P1076-1.00

Part

Nason Piston & pin set - 6P1076-1.00

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	94.00mm
Size:	1.00mm / .040"
Head Type:	Dome Top
Piston Type:	Cast
Length:	95.75mm
Comp Height:	47.55mm + 0.20mm
Pin Size:	25.15mm x 71.80mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	2.50mm
Oil Ring Width:	4.00mm
Ring Set:	2M5462 or 5462
Size:	1.00mm Oversize
