Nason >> Nason Piston & pin set - 6P1080-1.50

Nason Piston & pin set - 6P1080-1.50

Part
Nason logo

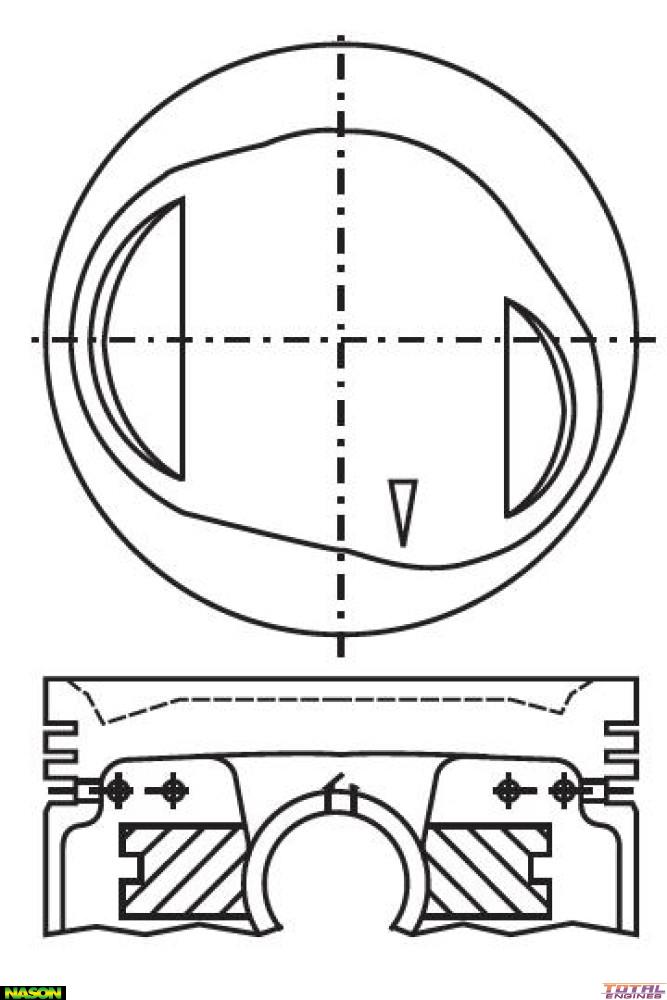

Nason Piston & pin set - 6P1080-1.50

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 91.10mm
Size: 1.50mm / .060"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 68.20mm
Comp Height: 32.20mm - 3.00mm
Pin Size: 22.00mm x 64.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4453 or 4453

Description

Comp Height 32.20mm Bowl Depth - 3.00mm

Replaces 6KRY8015
