Nason >> Nason Piston & pin set - 6P1085-0.50

Nason Piston & pin set - 6P1085-0.50

Part
Nason logo

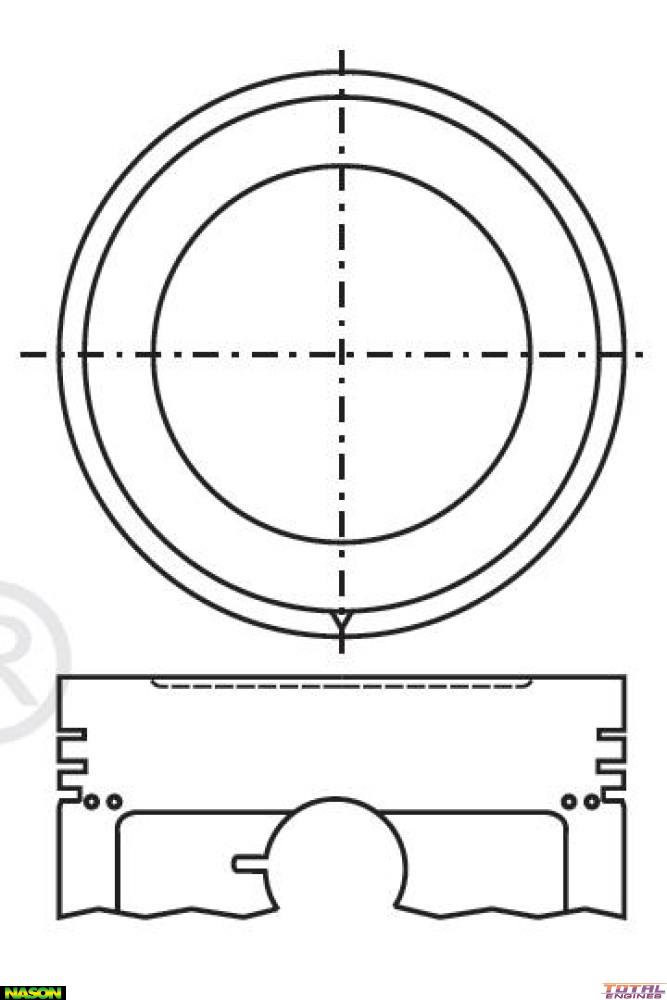

Nason Piston & pin set - 6P1085-0.50

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 88.00mm
Size: 0.50mm / .020"
Head Type: Dish Top
Piston Type: Cast
Length: 58.80mm
Comp Height: 29.30mm - 4.80mm
Pin Size: 21.00mm x 58.70mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4567

Description

With 4.80mm Depth Bowl

Anodized Head, Top & 2nd Ring Lands

Replaces 6MKRY7020
