Nason >> Nason Piston & pin set - 6P1088-STD

Nason Piston & pin set - 6P1088-STD

Part
Nason logo

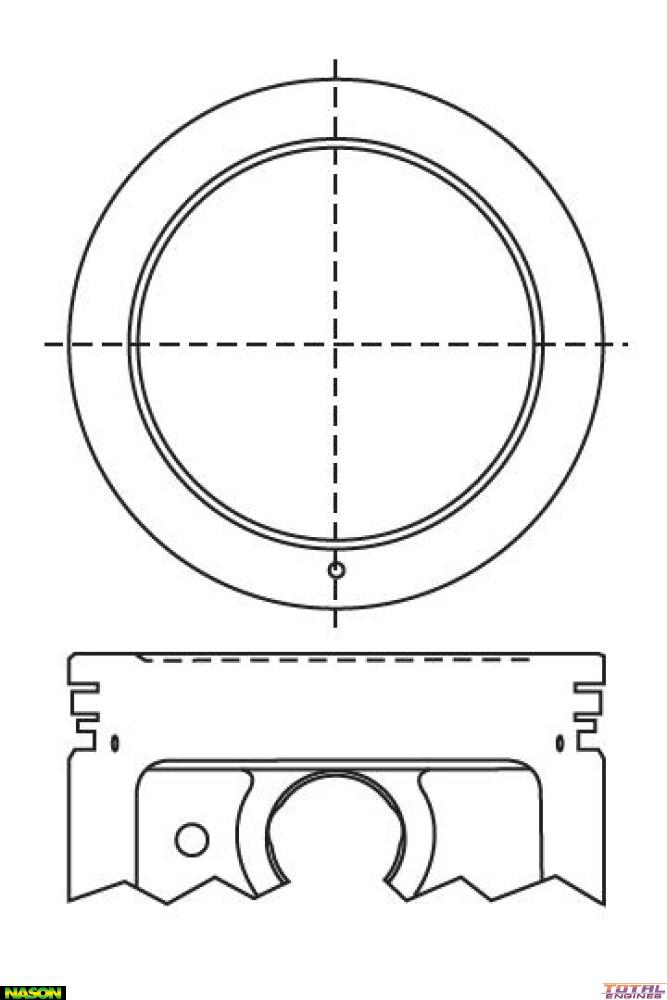

Nason Piston & pin set - 6P1088-STD

$233.01

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 86.70mm
Head Type: Dish Top
Piston Type: Cast
Length: 54.00mm
Comp Height: 30.50mm - 0.80mm
Pin Size: 21.00mm x 60.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.50mm
Ring Set: 2C5265

Description

Dish Top without Valve Reliefs
