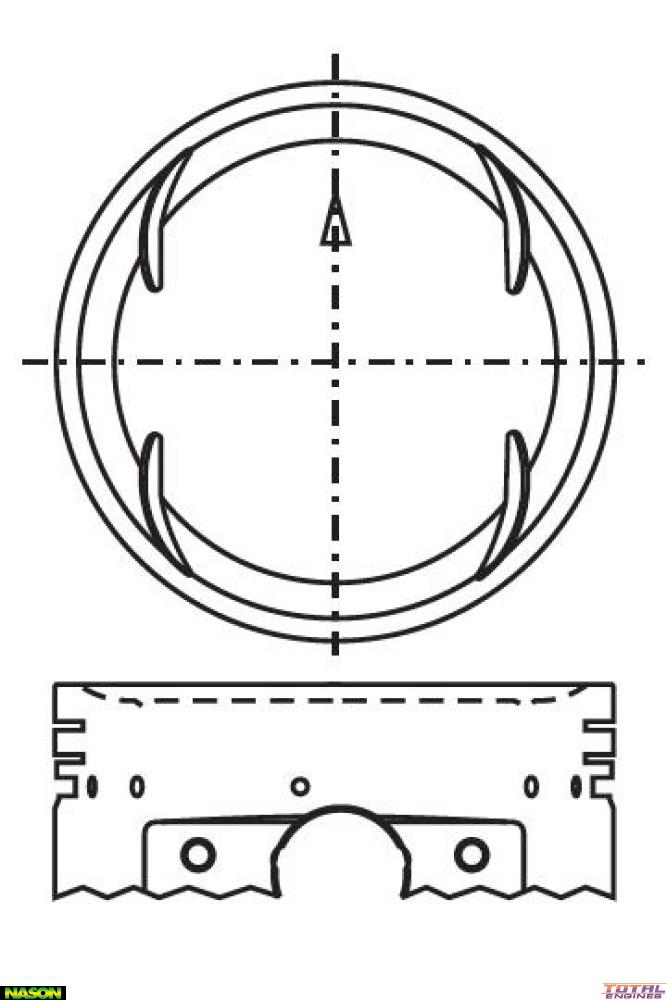

Nason Piston & pin set - 6P1091-1.00

Part

Nason Piston & pin set - 6P1091-1.00

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	93.00mm
Size:	1.00mm / .040"
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	66.00mm
Comp Height:	32.00mm - 2.60mm
Pin Size:	22.00mm x 64.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2M4883 or 4883
Size:	1.00mm Oversize
