Nason Piston & pin set - 6P1092-1.00

Part

Nason Piston & pin set - 6P1092-1.00

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	91.50mm
Size:	1.00mm / .040"

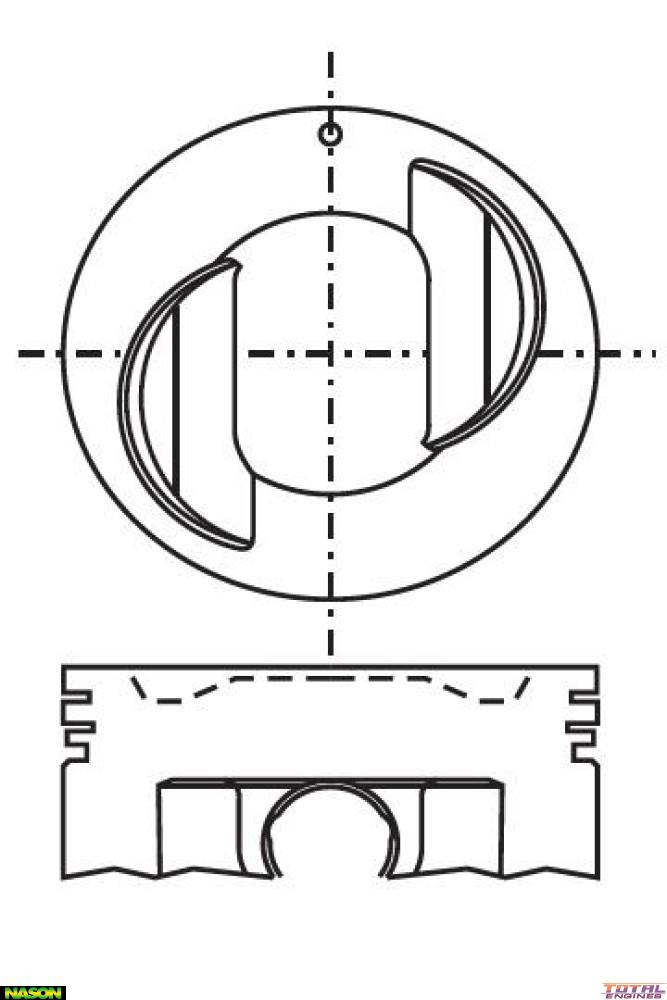

Head Type:	Dish Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	62.60mm
Comp Height:	32.00mm - 1.50mm
Pin Size:	21.00mm x 60.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	2.80mm
Ring Set:	2C4899
Size:	1.00mm Oversize
