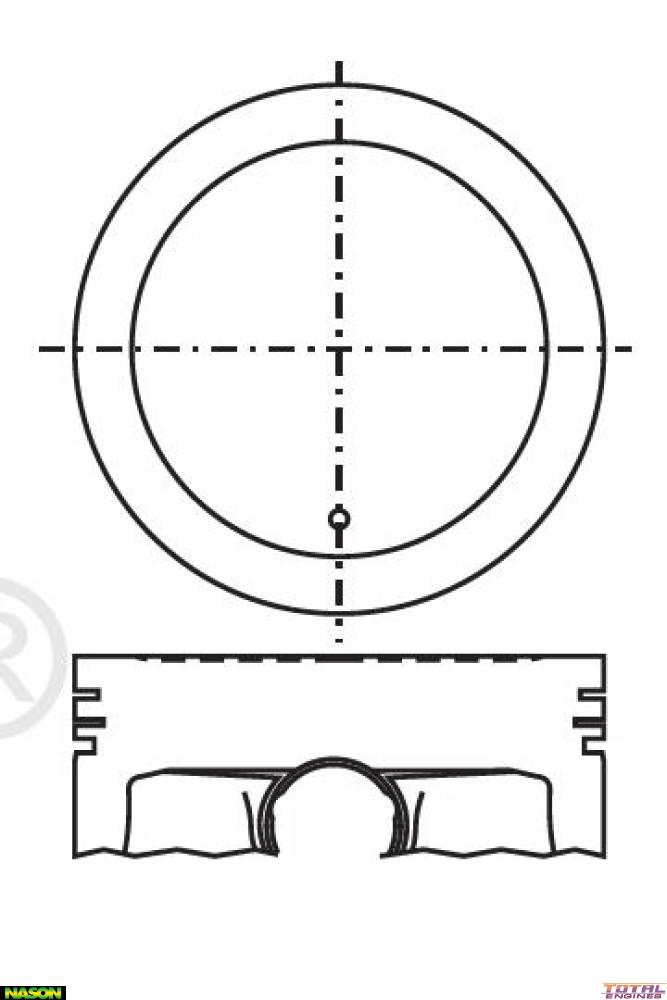

Nason >> Nason Piston & pin set - 6P1093-0.50

Nason Piston & pin set - 6P1093-0.50

Part
Nason logo

Nason Piston & pin set - 6P1093-0.50

$585.58

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 93.00mm
Size: 0.50mm / .020"
Head Type: Dish Top
Piston Type: Cast
Length: 58.30mm
Comp Height: 30.20mm - 0.40mm
Pin Size: 22.00mm x 58.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.50mm
Ring Set: 2C4781
Size: 0.50mm Oversize

Description

Anodized Head
