Nason >> Nason Piston & pin set - 6P1116-1.00

Nason Piston & pin set - 6P1116-1.00

Part
Nason logo

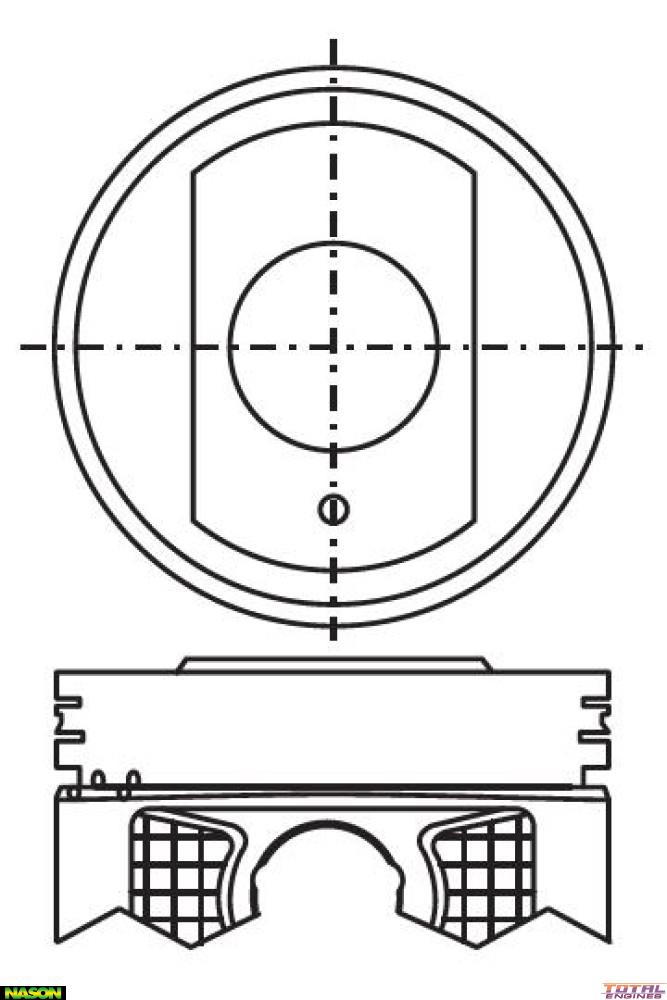

Nason Piston & pin set - 6P1116-1.00

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 95.00mm
Size: 1.00mm / .040"
Head Type: Dome Top
Piston Type: Cast
Length: 56.70mm
Comp Height: 29.10mm + 0.20mm
Pin Size: 22.00mm x 58.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5169

Description

Not Suitable For Mivec Engines

Anodized Head, Top & 2nd Ring Lands

Replaces 6MKRY8070
