Nason >> Nason Piston & pin set - 6P1117-1.00

Nason Piston & pin set - 6P1117-1.00

Part
Nason logo

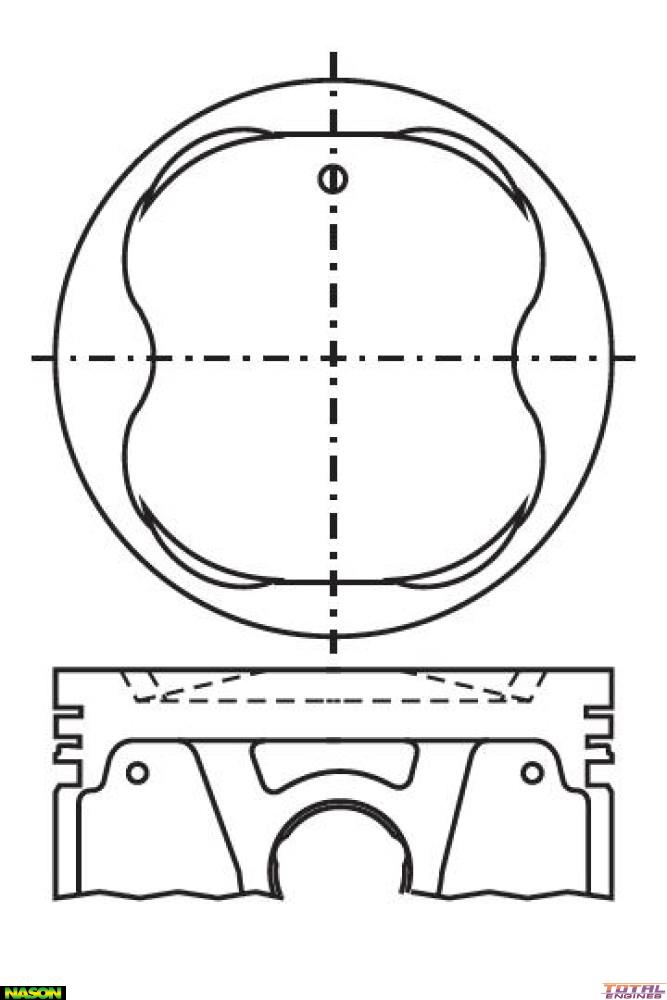

Nason Piston & pin set - 6P1117-1.00

$456.88

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 93.50mm
Size: 1.00mm / .040"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 63.00mm
Comp Height: 34.00mm - 4.90mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4911

Description

Anodized Head, Top & 2nd Ring Lands

Replaces 6MKRY7003
