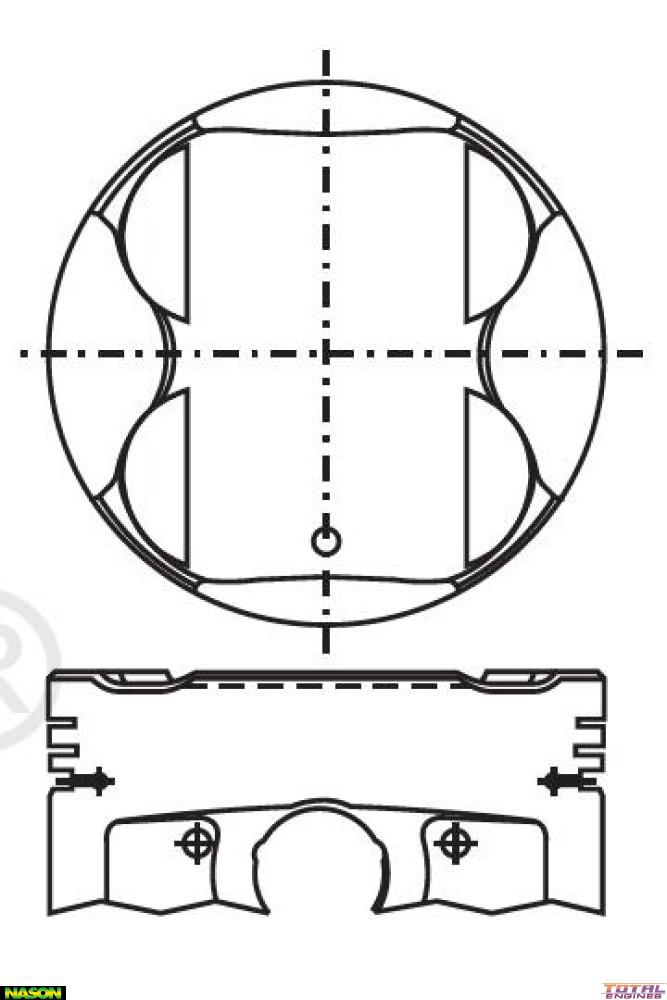

Nason Piston & Pin Set - 6P1174-STD

Part

Nason Piston & Pin Set - 6P1174-STD

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	87.50mm
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	65.00mm
Comp Height:	32.20mm - 2.10mm
Pin Size:	21.00mm x 62.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2M4676
